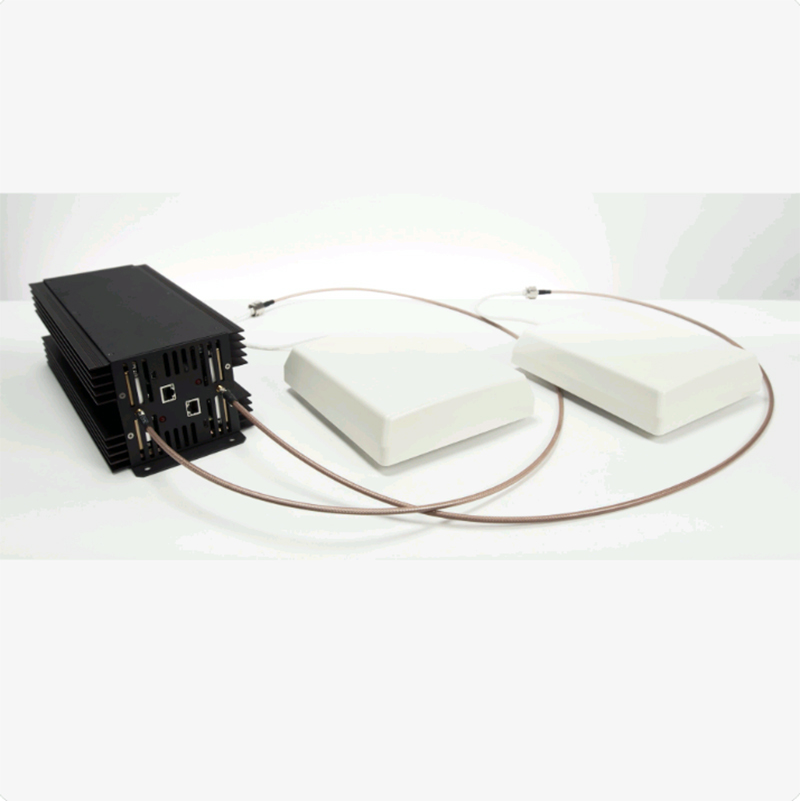

T-US-RS is a user-friendly high power cell phone and WiFi interceptor device that uses digital baseband signal synthesis (DDS) technology to not only suppress traditional GSM signals, but also provide strong interference protection for modern broadband communication networks such as UMTS, LTE and 5G. Whether it is fixed installation or temporary deployment, the device can provide stable signal suppression in an area of up to 50 square meters.
The device is equipped with 8 independent interference channels and has dynamic power adjustment function. Each channel can accurately adjust the frequency, bandwidth and power according to specific needs. The power of each interference channel can be adjusted up to 10W, providing strong interference signal coverage when needed, ensuring complete suppression of the specified frequency band.
This compact 8 bands mobile phone and wireless jammer has built-in multiple anti-interference designs, and the high-quality circuit board and power management system enable it to remain stable in high electromagnetic interference environments.
Supports remote programming and control via Ethernet connection to a PC. With the help of the included management software, users can accurately adjust key parameters such as interference power and frequency range, and monitor the working status of the device in real time.
The remote performance diagnostic function can also promptly detect potential problems in equipment operation, such as power attenuation, frequency drift, or hardware failure. Through diagnostic information, necessary maintenance measures can be taken quickly to avoid system paralysis or interference effect degradation due to equipment failure.
In addition to the independent working mode, T-US-RS can also connect multiple devices into a unified system through the network. Users can achieve centralized management and remote monitoring of the entire system through a single computer. It greatly improves the scalability and management flexibility of the equipment in large-scale deployment and simplifies the operation process.
Technical specifications of T-US-RS
| Rejection range | CDMA 800: 860-894 MHz PCS: 1930-1990 MHz 3G: 2110-2155 MHz 4G LTE 700: 699-798 MHz 4G LTE 2500: 2496 – 2690 MHz 5G: 3400-3800 MHz WiFi 2.4G: 2400 – 2484 MHz WiFi 5G: 5180 – 5850 MHz |
| Coverage area | up to 50 square meters |
| Single channel power | 10 W |
| Total power | 80 W |
| Dimensions | 340 x 140 x 110 mm |
| Weight | 4 kg |
