D-003 can instantly cut off all communication links between the drone and its control end through full-band signal suppression technology, especially for interference with FPV signals. The system will force the target drone to lose control in the interference area, trigger hovering and forced landing, or automatically return.

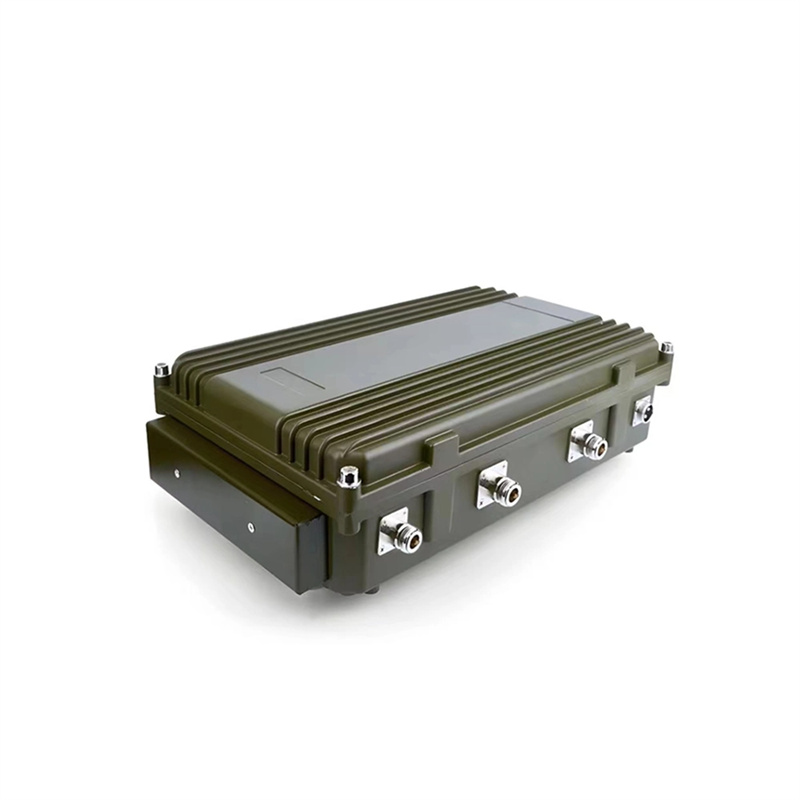

Using military-grade RF modules, the single-machine output power of 90W far exceeds that of general consumer-grade jammers. With 3 omnidirectional magnetic antennas, a 300-800-meter spherical protection net can be built to completely prevent the drone from escaping in any direction.
Different from the staged failure problem of traditional jammers, anti drone jammer is equipped with an adaptive frequency hopping tracking algorithm. When the drone attempts to reestablish the connection through frequency hopping, encryption or emergency protocols, the system can track and implement secondary suppression in real time, depriving the operator of control from takeoff, cruising to forced landing.

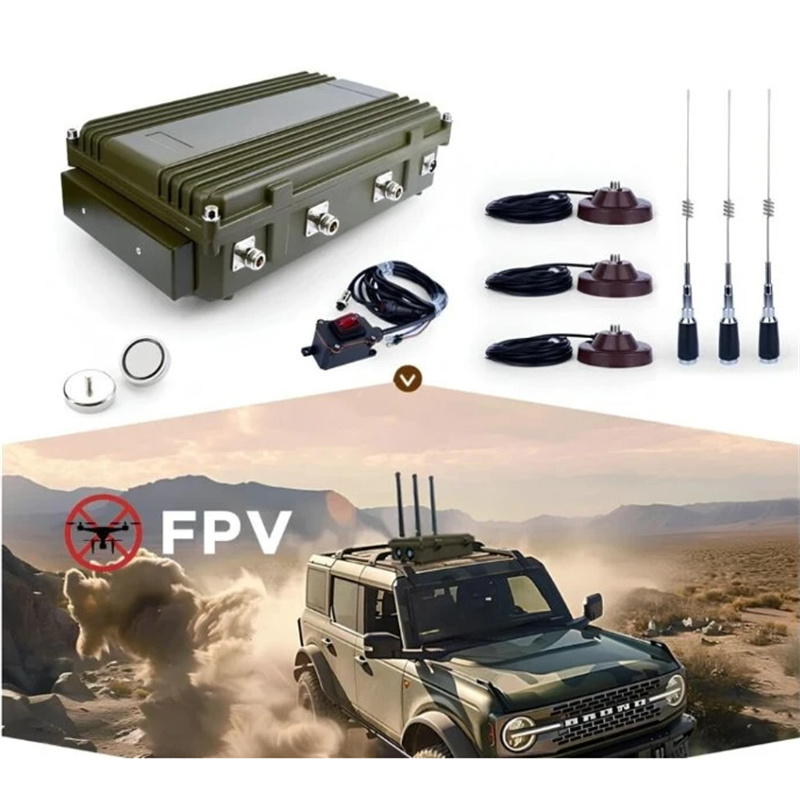

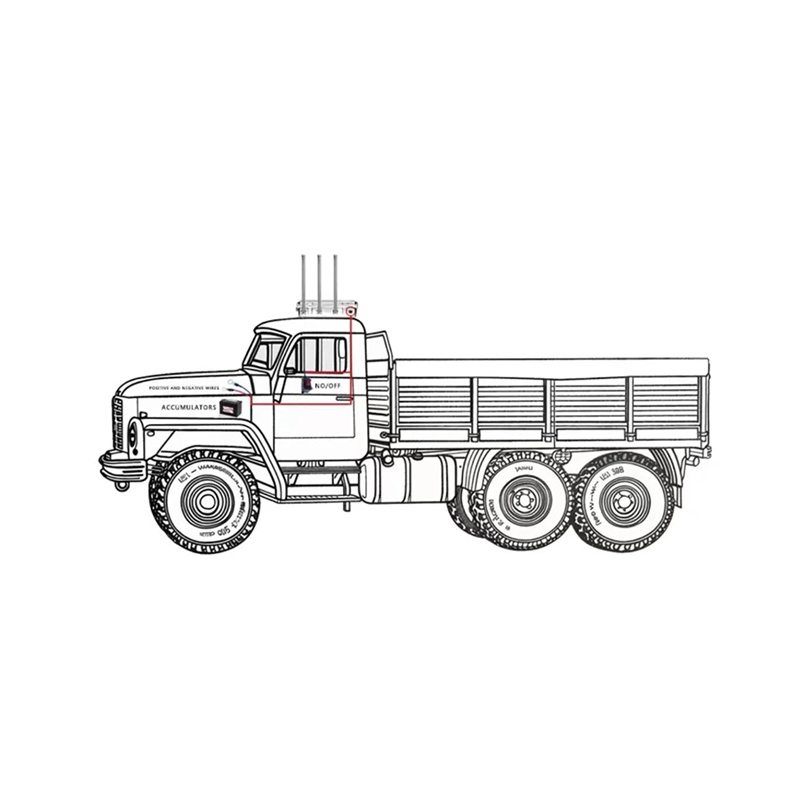

Each antenna is equipped with a ring-shaped shock-absorbing base, which can be stably installed on vehicles, mobile platforms or fixed positions to adapt to various complex environments (such as vibration platforms).
Visible security boundaries:
✓ Low-altitude protection of sensitive areas such as government sites and nuclear power plants.
✓ Immediate countermeasures against drone intrusions during large-scale events or conferences.
✓ Construction of electronic warfare defense systems in military restricted areas.
✓ Anti-aerial photography leaks at film and television crew shooting sites.
Interference Frequency:
900MHz: 860 – 930 MHz
Wi-Fi 2.4G: 2400 – 2500 MHz
Wi-Fi 5.8G: 5725 – 5850MHz
Power supply: AC110-240V, DC24V
Dimensions: 360 x 250 x 170 mm
Weight: 7.6 kg
Operating temperature: -25℃ to +65℃
Humidity: 5-95%
