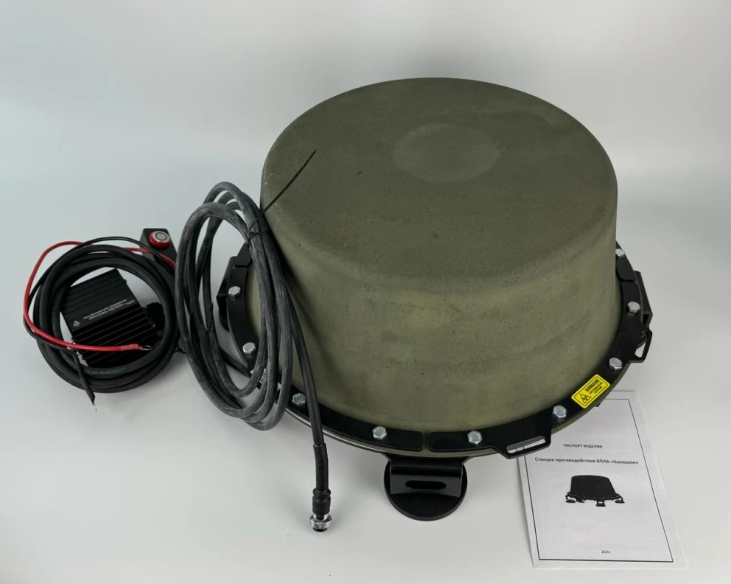

The main body of this wide area Anti-FPV drone signal disruptor has a dome-shaped design. The shell is made of high-strength composite materials and is coated with a frosted coating on the surface, which has good wear resistance and corrosion resistance. Its shell design not only effectively protects the internal precision circuits, but also provides excellent resistance to environmental interference.
The device can cover signals from 630-1020 MHz and is specially equipped with high-gain cross-polarization antennas to better resist interference and multipath effects. The antenna radiation pattern is dome-shaped and can achieve 360-degree omnidirectional coverage. Its signal barrier can extend up to 200 meters, providing a wide safety barrier for the protected area.
It supports signal blocking of multiple drone targets at the same time, which is suitable for handling complex situations where multiple drones enter the interference range at the same time. Its built-in algorithm can intelligently allocate signal resources to ensure that all targets within the coverage range are interfered.
The whole set of equipment comes with long cables and signal transmission lines, which can easily handle scenes that require large-scale deployment or compact installation spaces.

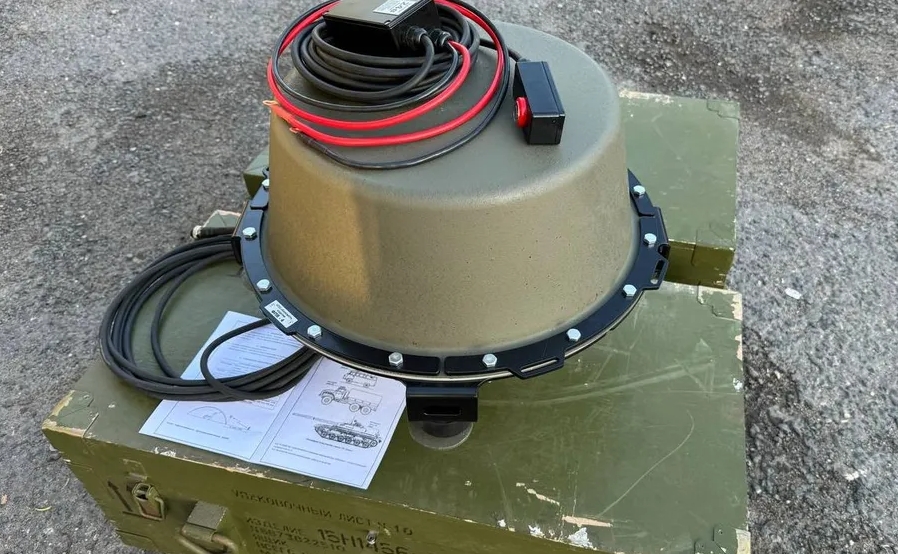

The base is equipped with multi-point fixing bolts and can be firmly installed on a flat surface or a specific bracket. The bottom of the base is a disc-type support structure to ensure long-term stability.

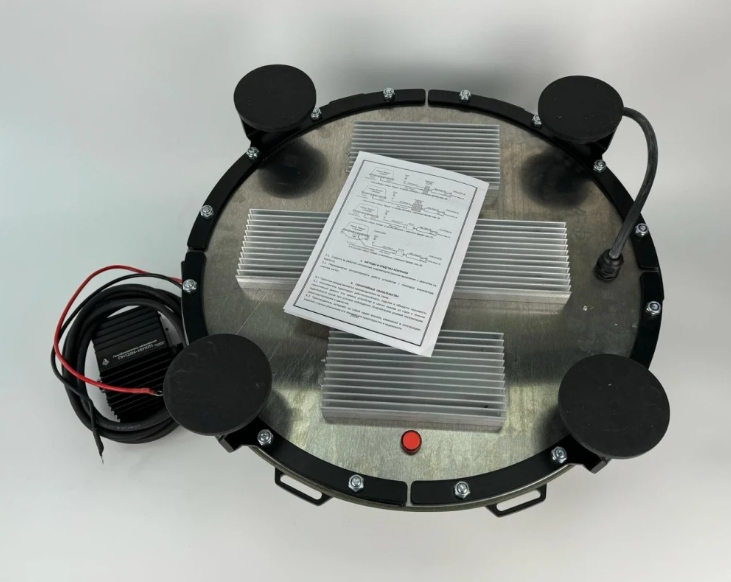

The vehicle-mounted UAV jamming device integrates an efficient heat sink at the bottom, and with the internal air duct design, the device guarantees performance at high power output.
The magnetic base plate (which can be directly adsorbed on the metal surface of the vehicle or platform) and the mechanical bracket (which can be fixed with bolts or welding) provide a variety of installation options, which can quickly adapt to the needs of different scenarios.
D-US-03-1 supports power supply from 12V or 24V on-board DC power grid, is compatible with a variety of vehicle types (such as small vehicles, large trucks and self-propelled equipment, etc.), and can provide continuous and stable power support.
The built-in power management module can dynamically adjust the power distribution according to the load, improve the overall energy efficiency, and further extend the service life of the device.
D-US-03-1 Technical Specifications:
| Interference frequency range | 630-1020 MHz |
| Output power | 20W |
| Effective interference distance | 200 meters |
| Power supply requirements | vehicle network power supply |
| Support voltage | 12V or 24V |

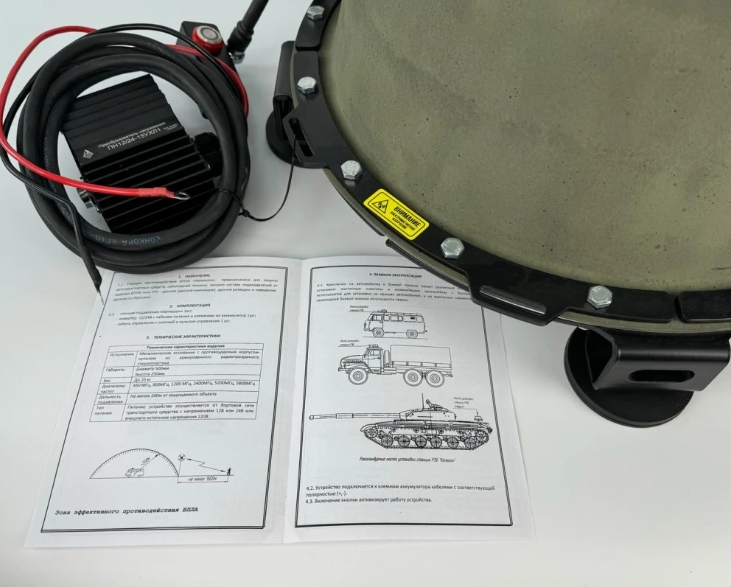

| Package contents | Interference host × 1 12/24 volt power inverter × 1 Power cable with battery clamp × 1 Control cable with switch button × 1 |
