D-US-M50 Mobile Box Type High Power RF Jamming Device for Drones

This mobile box type RF jamming device for drones integrates RF detection and countermeasure functions, and can handle drone communications in multiple frequency bands from 433M to 5.8GHz, and achieve defense, forced landing or return by interfering with drone control signals.

Even in the face of multiple drones invading at the same time, the system can quickly switch or interfere with multiple frequency bands at the same time to ensure timely and comprehensive defense.

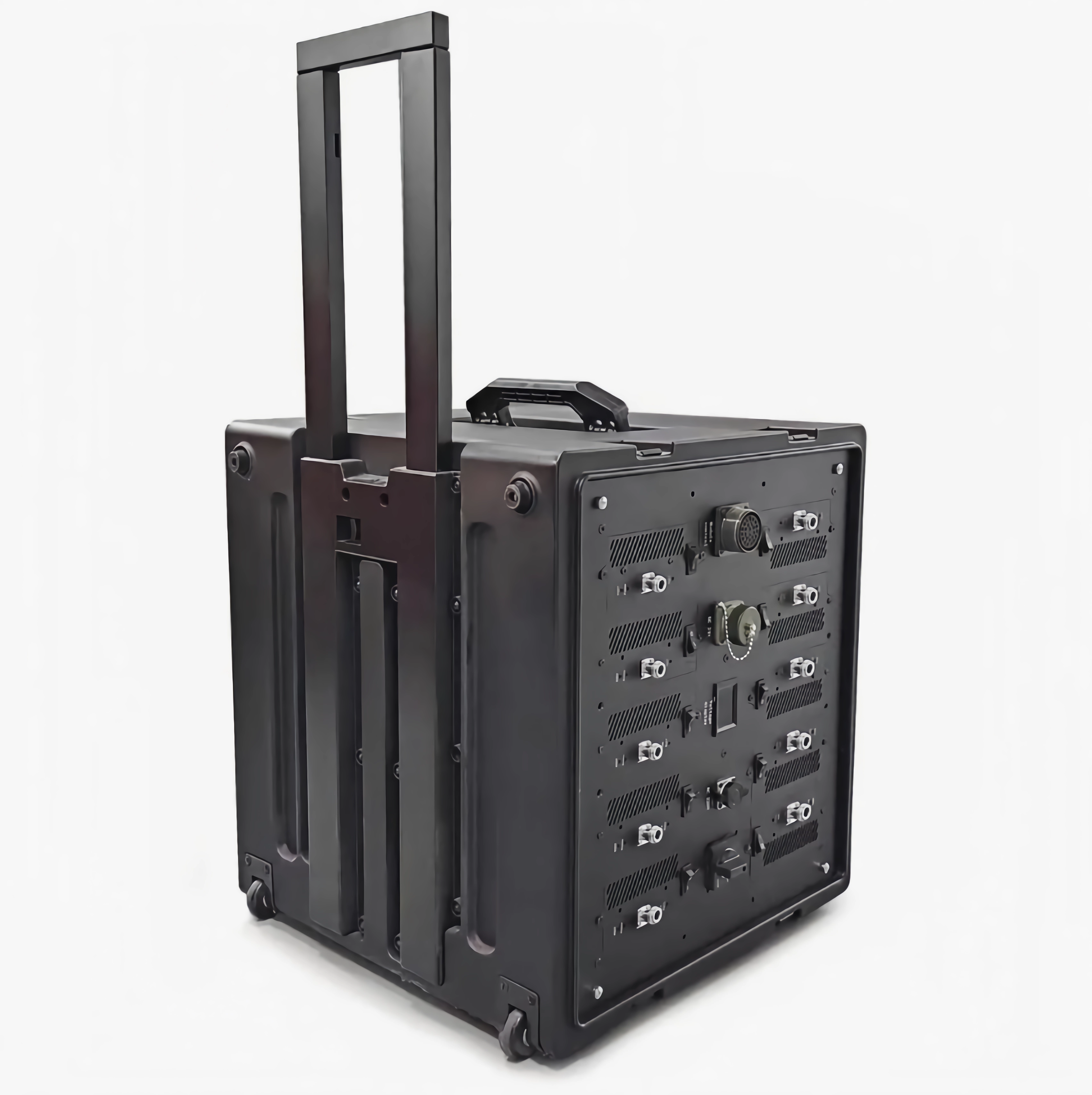

The D-US-M50 looks like a trolley case, with a telescopic handle on the top and wheels on the bottom for easy movement and rapid deployment. Compared with traditional fixed blockers, this device is more flexible to use.

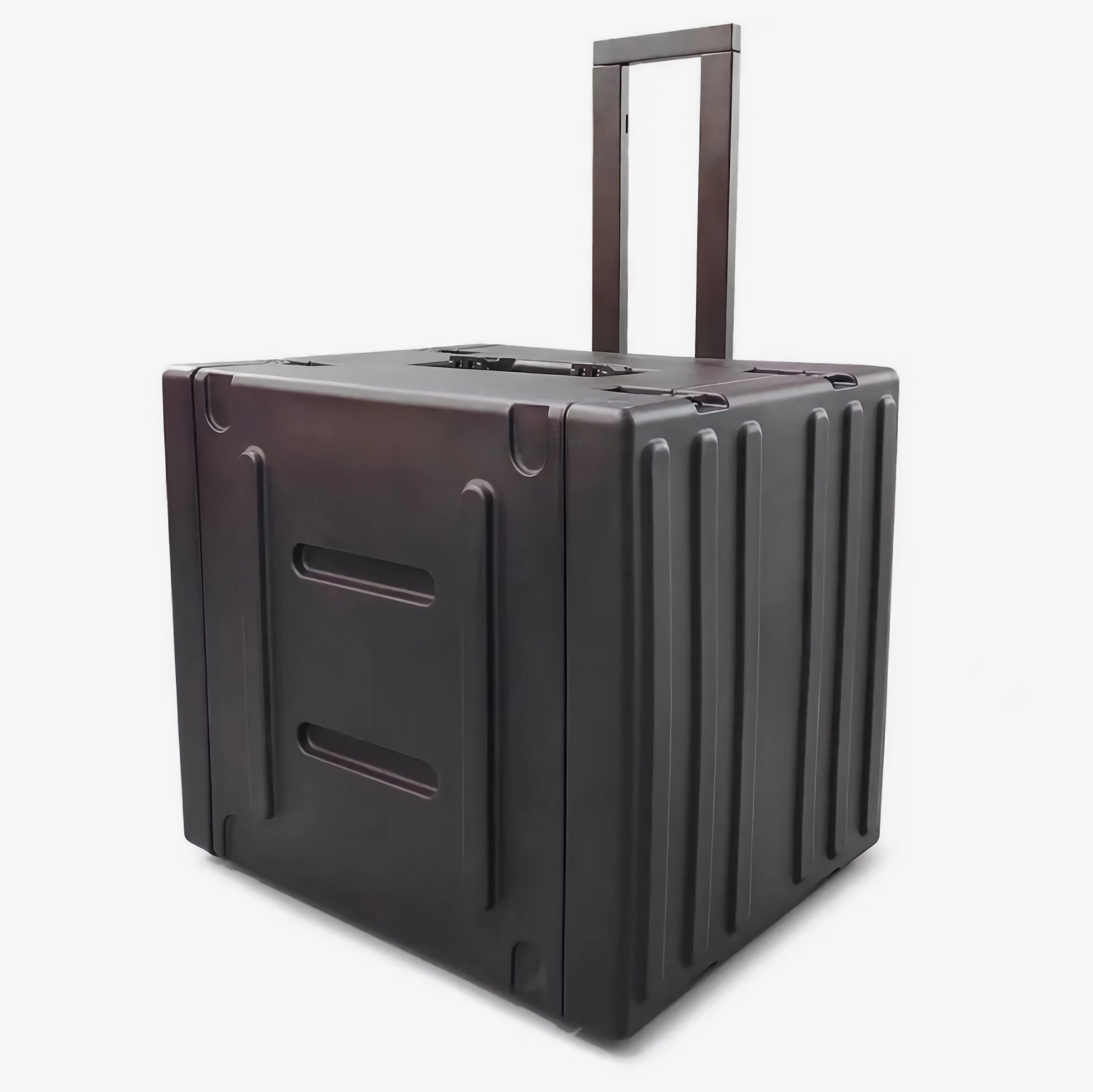

The shell is made of high-density material and is equipped with a reinforced frame around it. It has waterproof and impact-resistant functions to ensure durability during transportation and use.

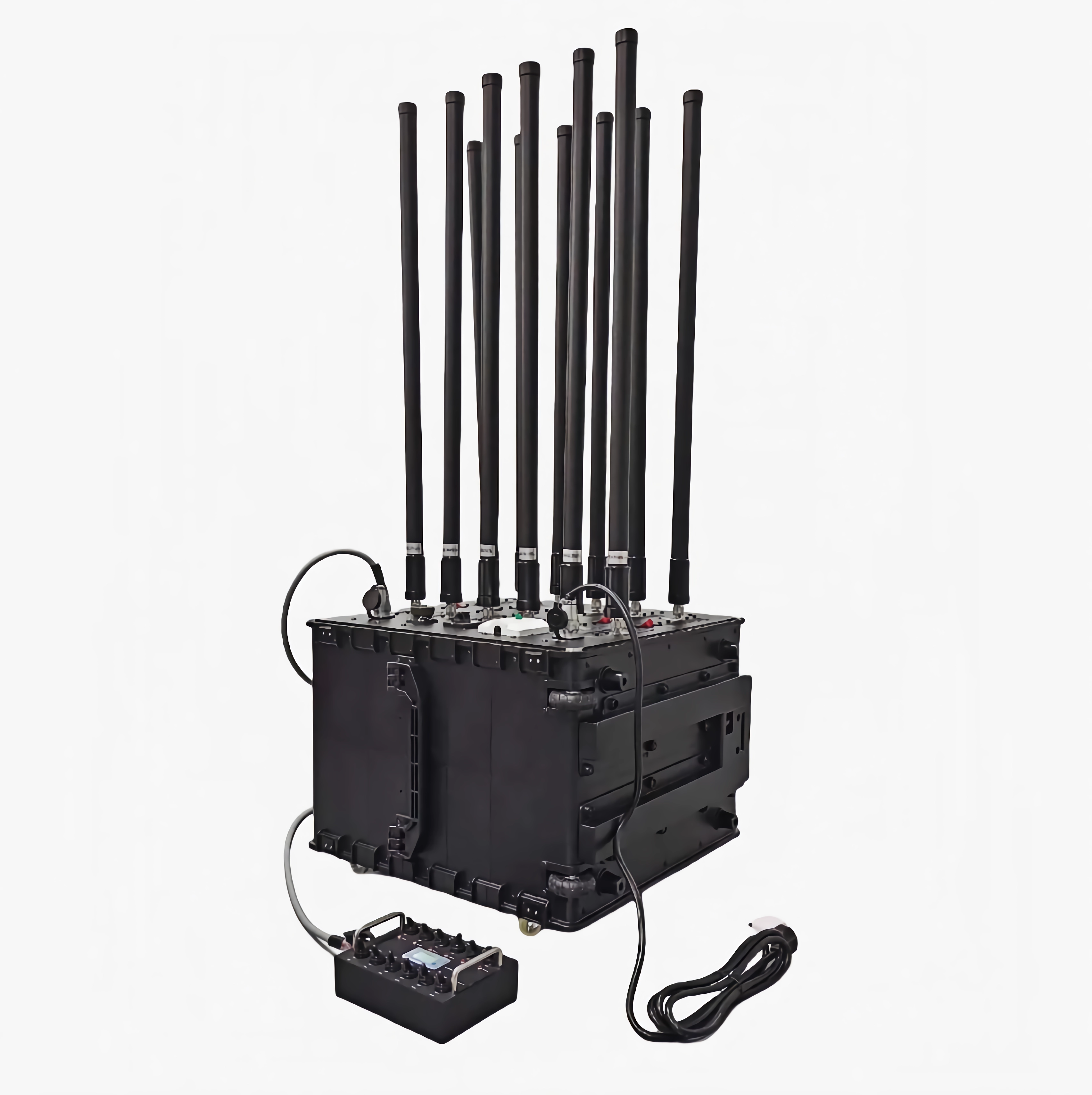

The design is highly modular, with multiple pluggable module interfaces on the side, allowing users to expand or replace components to meet specific needs. Its 360-degree omnidirectional jamming capability eliminates the need for manual adjustment, making the device particularly suitable for use in environments where drones are active and direction is uncertain.

Why is this high power signal jammer so powerful? The reason lies in the following key components:

1. Wide-range detection antenna: Accurately detect and track drone signals to ensure identification and location of most commercial and recreational drones.

2. RF power amplifier switch: It is a key component for controlling signal amplification. It can amplify the captured weak RF signal to ensure stable signal transmission. At the same time, it controls the output power to customize the interference range and intensity according to the situation to prevent unnecessary interference.

3. High-sensitivity receiver: Responsible for processing the RF signal captured by the detection antenna and transmitting key information to the control unit for real-time analysis to quickly formulate accurate countermeasures.

4. Intelligent controller: As the core of the entire system, it determines the model, location and flight intention of the drone by comprehensively analyzing the signals transmitted by the receiver. Once the target drone is determined to be a threat, the controller will start the corresponding countermeasure program.

The D-US-M50 supports manual and automatic operation modes. Users can choose manual intervention or set automatic defense programs according to actual needs.

a. In automatic mode, the system will automatically interfere with the drone signal according to preset conditions
b. In manual mode, the operator can control the specific interference time and intensity through the interface to achieve better control in sensitive situations.

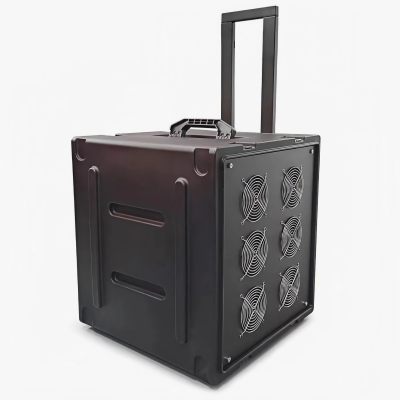

In addition, the device uses a multi-layer heat dissipation mechanism, including heat dissipation holes in the body, multiple internal fans, and thermal conductive materials. This ensures that the device’s continuous operating ability will not be affected under long-term high-power operation.

The safety protection mechanism is complete. When the internal temperature is too high or the current is abnormal, it will automatically adjust the power or shut down the system to avoid equipment damage or safety accidents.

This UAV signal blocker interference method and effect:

• Return to Home (RTH) function: By interrupting the communication between the drone and its controller, the drone’s built-in automatic return to home function is triggered to guide it back to the take-off point. This method is ideal for protecting areas where it is critical to maintain a safe distance from the drone, eliminating threats without causing damage to the drone itself.
• Forced Landing Function: In the event of an unsatisfactory RTH, the system can interfere with the drone’s GPS signal, forcing it to land immediately. This is especially effective in sensitive areas, preventing drones from getting closer to restricted areas.

Frequency Details

Device Details

– Interference range: 1-3 km
– Coverage direction: 360-degree omnidirectional coverage (applicable to all airspaces)
– Power supply voltage: AC100-240V
– Operating temperature: -40℃-55℃
– Output power: 600-1000W
– Customization options: Support personalized configuration options
