Imagine an extreme environment where an expedition team needs a reliable device to complete the mission. This portable military high power anti drone jammer is their best choice because of its sturdy shell and excellent performance.
This high power anti drone jammer, which looks like a shield, can be activated after aiming at the drone to interfere with the navigation, remote control and image transmission bands of the drone, causing the drone to slowly descend. In this process, the interference needs to continue until the drone completely lands and stops rotating. The device can be turned off only after the drone lands and the battery is removed.

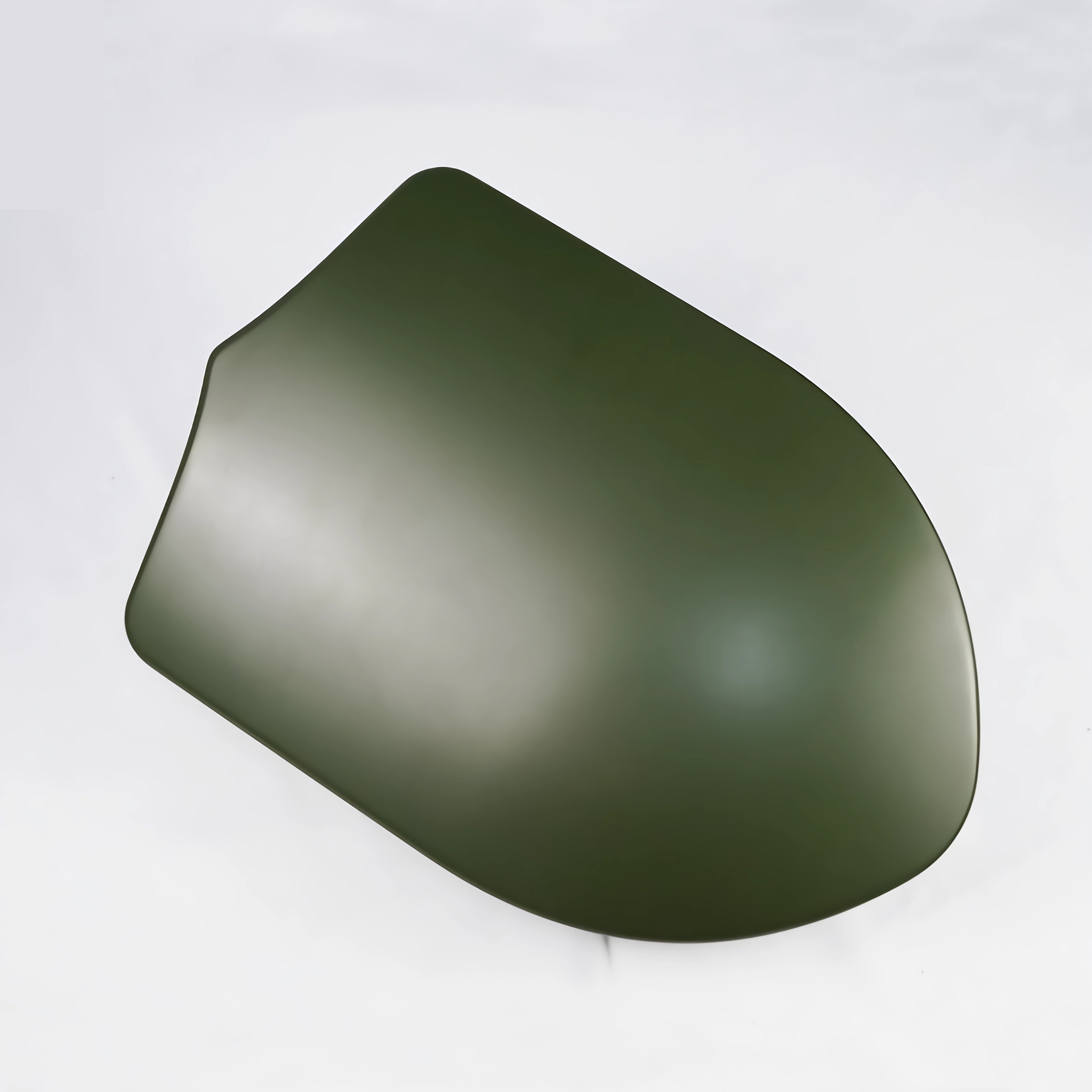

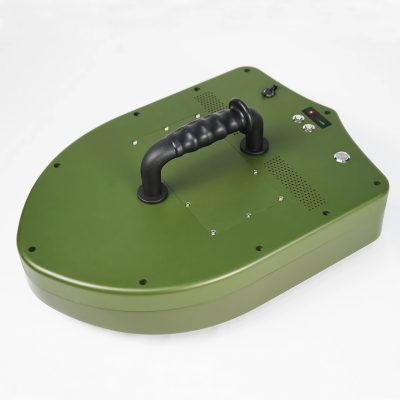

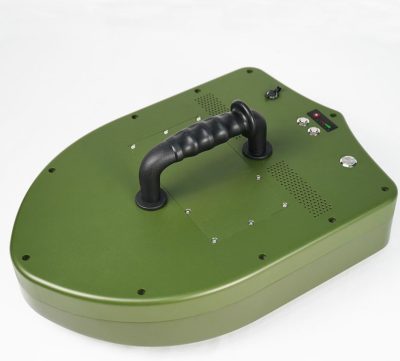

The exterior is made of sturdy military green metal material, giving it a military style, great texture and strong durability. D-US-SD adopts a streamlined shell design with rounded corners to prevent unnecessary bumps and injuries to the user during use. It also effectively reduces the air resistance of the device during use, improves the stability and comfort of operation, and is easy to carry and use.

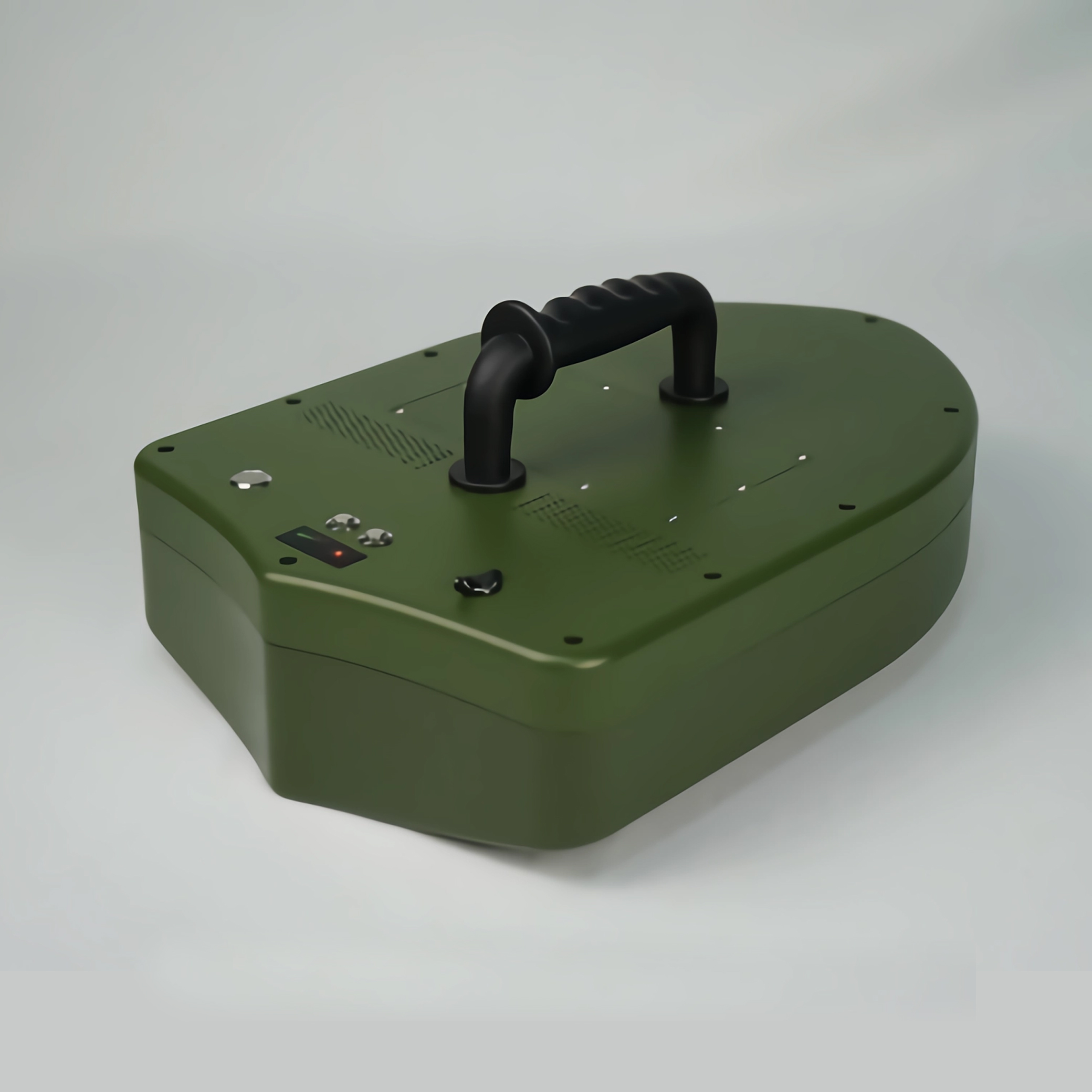

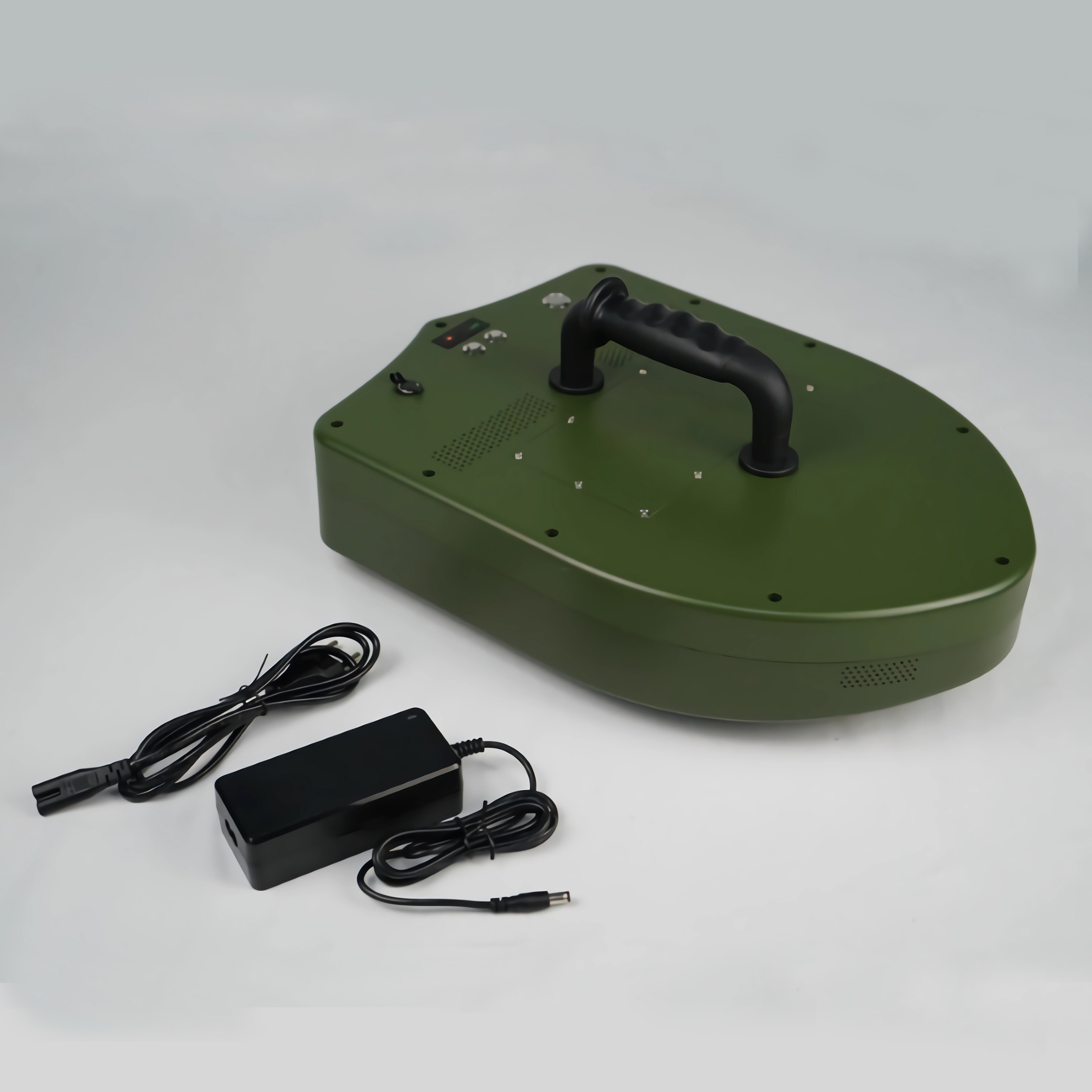

The top is equipped with a sturdy black handle made of non-slip material. The handle design is ergonomic and provides a comfortable grip even in wet environments, making it easy to operate for a long time.
The body is evenly distributed with multiple ventilation holes to ensure good heat dissipation of the internal electronic components.

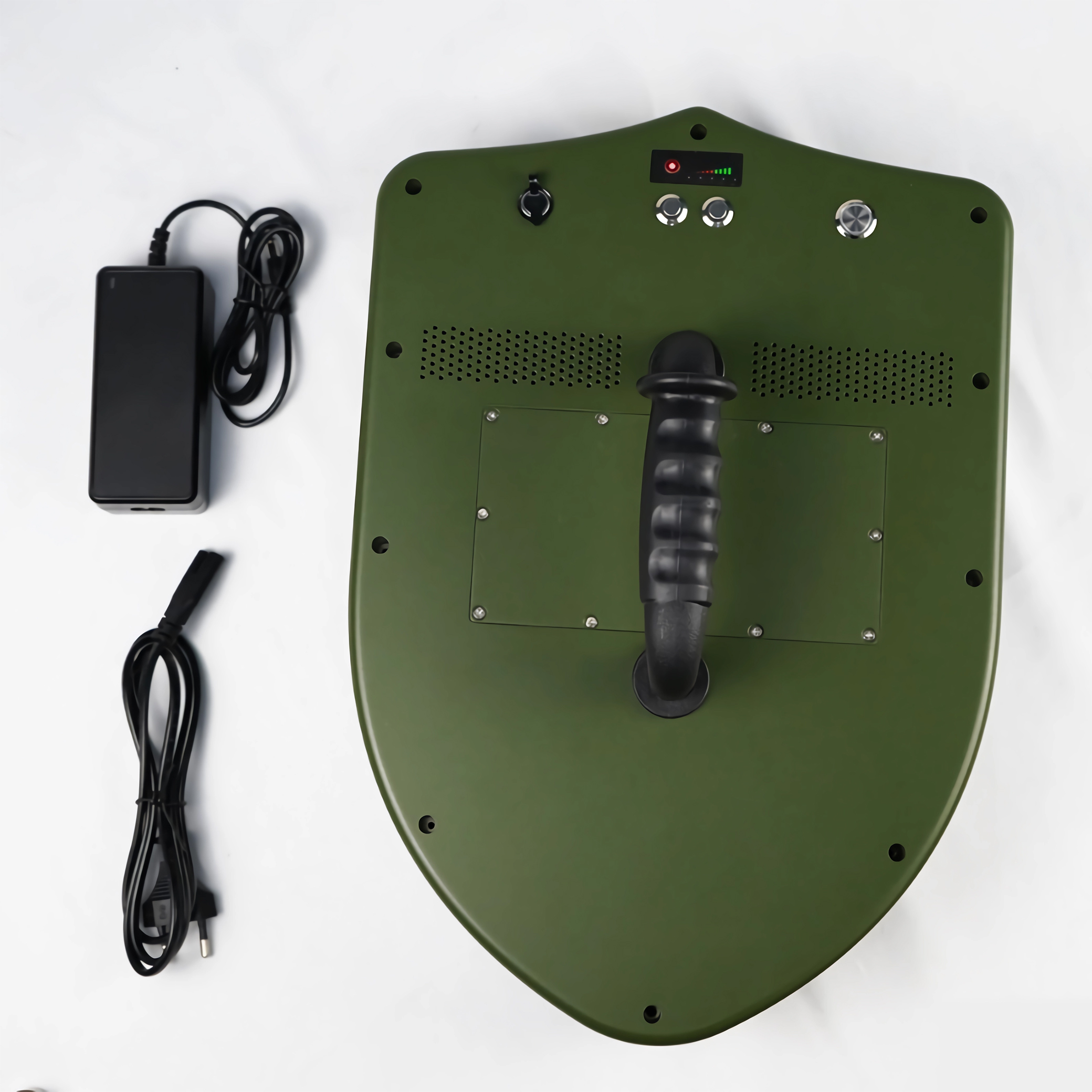

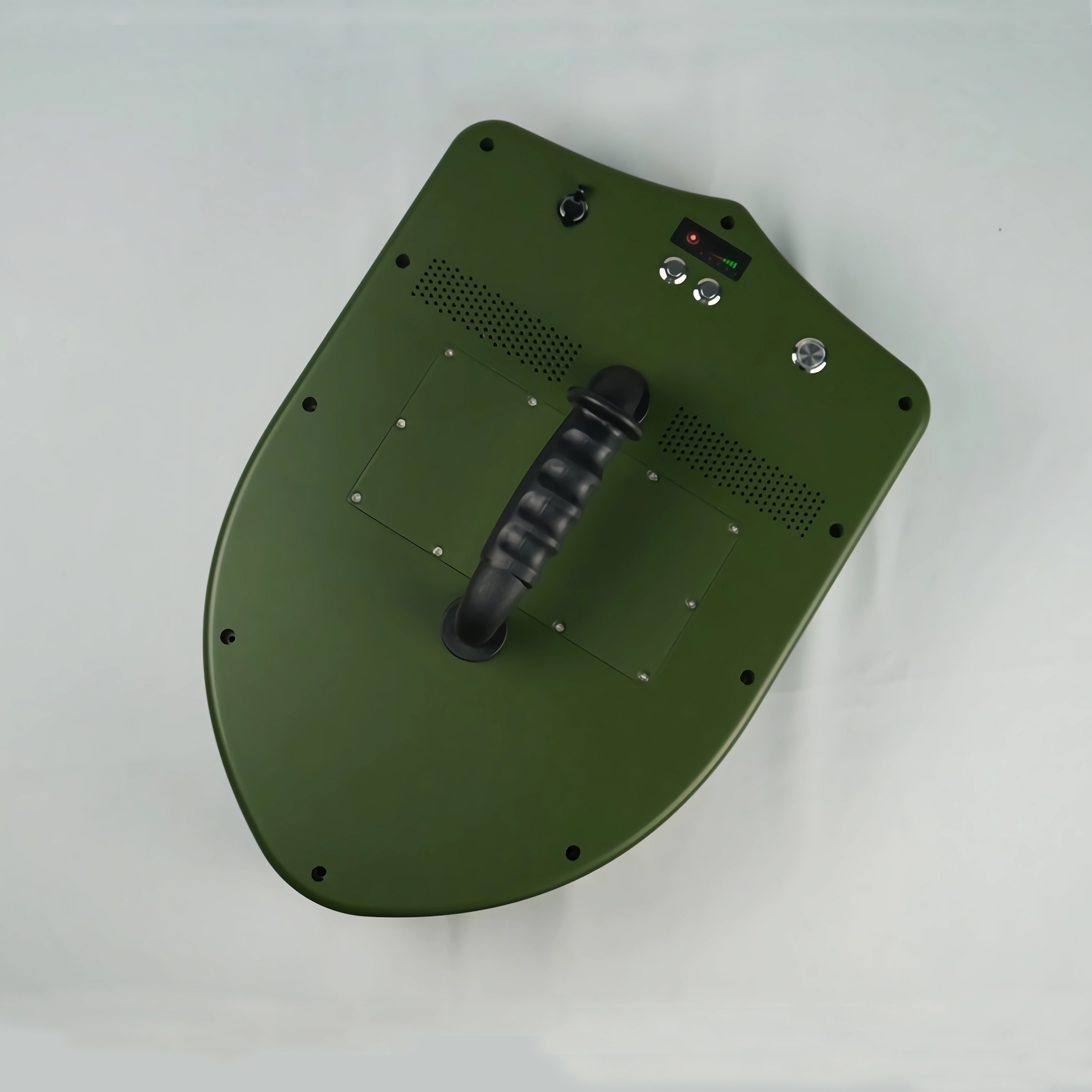

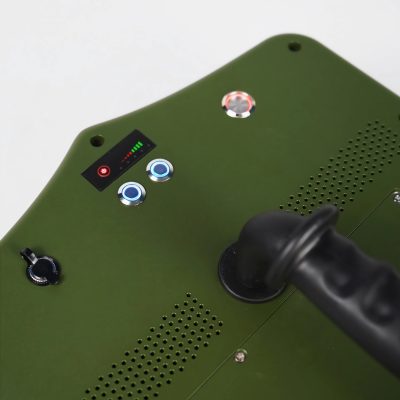

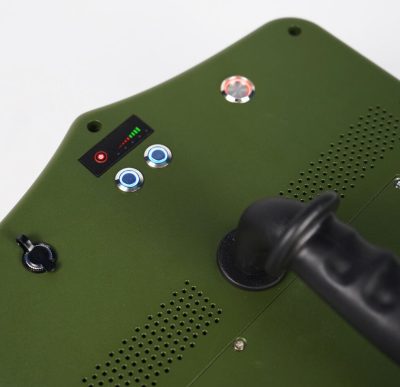

The control panel of the device is set in a corner of the top, equipped with necessary control buttons and indicator lights. The indicator light design is eye-catching, which makes it easy for users to clearly understand the working status of the device under different light conditions.
Multi-band control function
Working frequency band (optional):
840-930MHz：Lora
1160-1280MHz: GPSL2-GPSL5
1565-1586MHz: GPSL1
2400-2484MHz: WIFI2.4G
5150-5350MHz: WIFI5.2G
5725-5850MHz:WIFI5.8G
Notes:
* DJI drone forced landing (1.5G, 2.4G, 5.8G), driven away (2.4G, 5.8G).
* DOTON drone forced landing (1.5G, 2.4G, 5.2G, 5.8G), driven away (2.4G, 5.2G, 5.8G).
* 433M frequency band: This is a commonly used remote control frequency band for domestic drones, commonly seen in TV remote controls, car keys, children’s toy aircraft and other devices.
* 900M frequency band: Mainly used for remote control of industrial drones, suitable for professional-level drone control needs.
* 1.2G frequency band: The frequency band used by the Beidou navigation system will also be widely used in the drone industry in the future.
* 1.4G frequency band: The application of drones in this frequency band is relatively small in the industry, but its use is special and cannot be ignored.
Equipment Specifications
-Working principle: radio interference suppression
-Coverage angle: -45°~45°
-Maximum number of transmission channels: 6
-Number of simultaneous interferences: 10
-Coverage range: ≤1 km
-Interception response time: <3 seconds
-Working temperature range: -35 ℃~ 55 ℃
-Total power consumption: <150
-Power supply voltage: 220 volts AC
-Dimensions: 320*220*80±5 mm
-Weight: ≤4.5 kg
-Power supply type: AC220V-DC24V
