Let those unauthorized drones go from “well-trained” to “blind flying” in an instant? All this is under your control!
This FPV jamming the blocker drone supports signal interference in multiple frequency bands, covering 868 MHz, 915 MHz and 1.2 GHz frequency bands, which can effectively shield the control and communication signals of most FPV drones and effectively inhibit the flight of drones on all regulatory frequency bands.

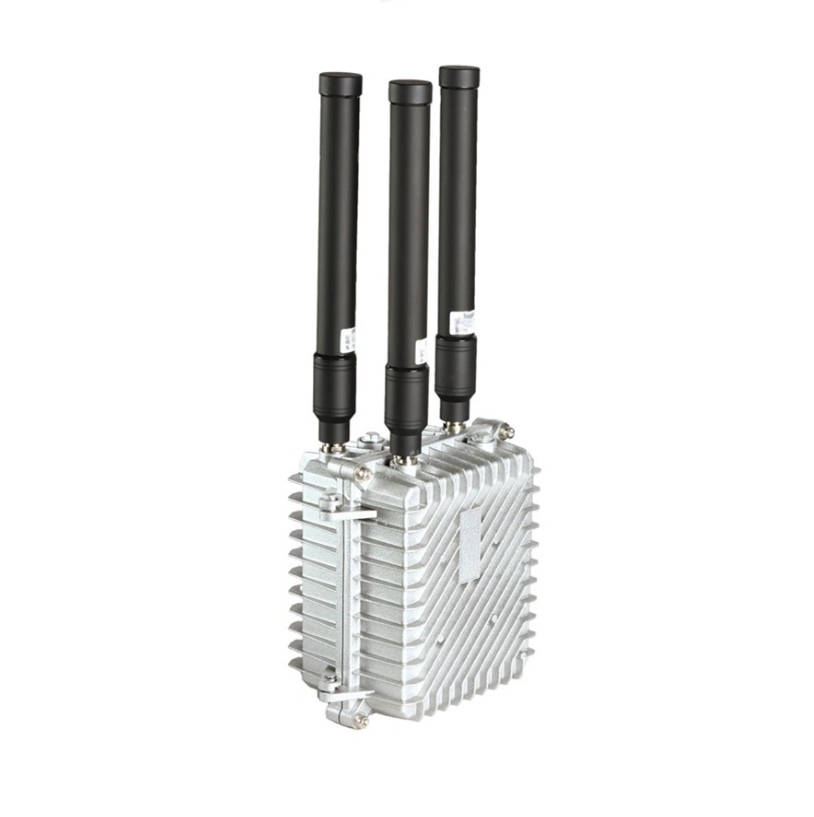

Equipped with three OMNI antennas with a gain of 3dBi and a length of 30 cm, it ensures that the signal can be evenly transmitted and covers a wider area.
The unique anti-echo interference function effectively suppresses the echo reflection of its own signal. In areas with dense buildings, walls or metal surfaces often trigger signal echoes. The anti-echo design allows the device to accurately and efficiently maintain the interference effect in complex environments.
It adopts a fanless passive cooling system, which increases the heat dissipation area through the heat conduction of the shell and the multi-layer fin heat sink structure, promotes air flow, and reduces heat accumulation inside the device.
Flexible 3 bands FPV drone defender has multiple self-protection functions:
Overheat protection: When the device continues to work and the temperature is too high, the protection mechanism will automatically reduce the output power or temporarily interrupt the work to prevent the device from being damaged by heat.
Overcurrent protection: When a circuit abnormality or short circuit occurs, the system will automatically cut off the power supply or reduce the output power to avoid damage to internal components.
Anti-vibration function: It can maintain a stable working state even in a vibrating environment (such as when the vehicle is moving), ensuring that it can be used normally when installed on a vehicle or other mobile platform.
Battery compatibility of D-US-V1 drone remote control jammer:
The device supports multiple power supply methods, including 24V military vehicle power supply, independent battery power supply, and 220V grid power supply. Users can easily switch power supplies in outdoor or indoor environments to achieve continuous use of the device.
The built-in 8Ah battery enhances the independence of the device. Even without an external power supply, the device can work continuously for 40 minutes to meet the short-term mission requirements in emergency situations.
D-US-V1 basic specifications:
| Interference range | 500 meters |
| Interference frequency | 868 MHz (863 – 870 MHz) 915 MHz (902 – 928 MHz) 1.2 GHz (1150-1260 MHz) |
| Antenna type | OMNI antenna, gain 3dBi, height 30 cm |
| Total power | 120W or 150W |
| Power supply | Support 24V battery or 220V power supply |
| Run time | All day |
| Built-in battery | 8Ah |
| Dimensions | 32 x 18 x 10 cm |
| Weight | 5.25 kg |
