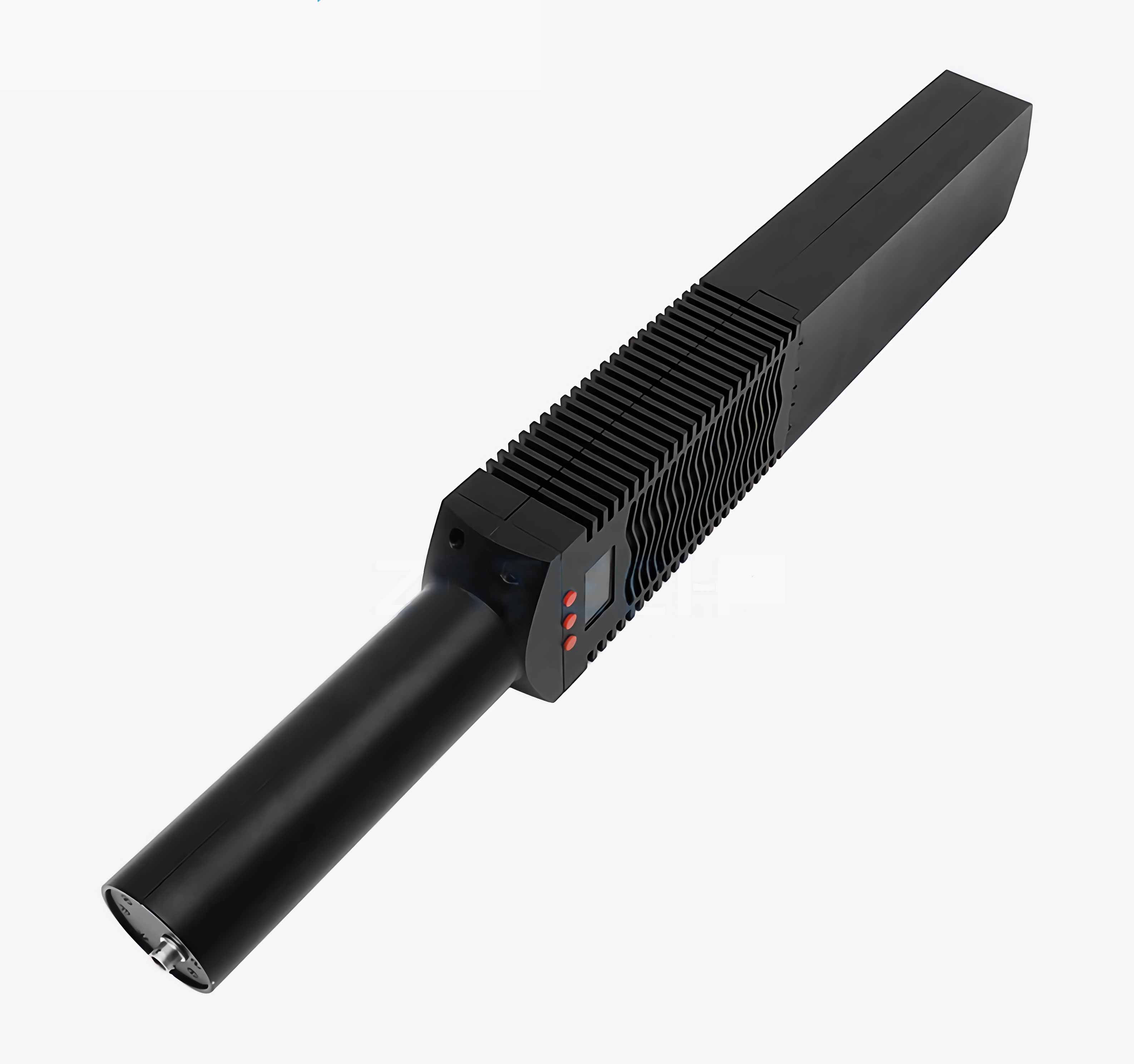

Who would have thought? This jamming device that looks like a handheld gun can actually capture drones and “shoot them down”? DUS-GF5 has 5 independent frequency bands, supporting 433M, 900M, 1.5G (1565-1620MHz), 2.4G (2400-2484MHz) and 5.8G (5725-5850MHz), with a single-channel maximum power of up to 40W. Whether it is the popular DJI Mavic2 or Genie 4Pro V2 and other different models of drones on the market, it can easily detect and suppress them.
Equipped with a high-precision infrared sight, it not only allows users to clearly see the target drone during operation, but also achieves precise directional jamming. It’s like you are playing a shooting game, but the difference is that this device allows you to actually lock the drone in the air and “shoot” it.
Compared with the traditional slightly bulky desktop drone blocker, this handheld gun type 5-band drone suppressor jammer brings more flexibility and maneuverability. It not only feels very powerful in your hand, but also easy to use anytime and anywhere. Whether you are patrolling outdoors, performing military missions, or in high-demand security protection scenarios, DUS-GF5 can easily handle it and take action anytime, anywhere!
Detailed Specifications:
1. Frequency and power (frequency and power can be customized according to customer needs):
| 5.8G (5725-5850MHz) | 25W |
| 2.4G (2400-2485MHz) | 40W |
| 1.5G (1560-1620MHz) | 20W |
| 900 (900-930MHz) | 20W |
| 433 (430-440MHz) | 10W |
2. Antenna performance:
Built-in high-gain directional antenna (anti-interference distance diameter 1Km -2Km).
The gains are: 5.8G band>12dBi, 2.4G>10dBi, 1.5G>8dBi, 900M>5dBi, 433M>3dBi.
3. System protection and heat dissipation:

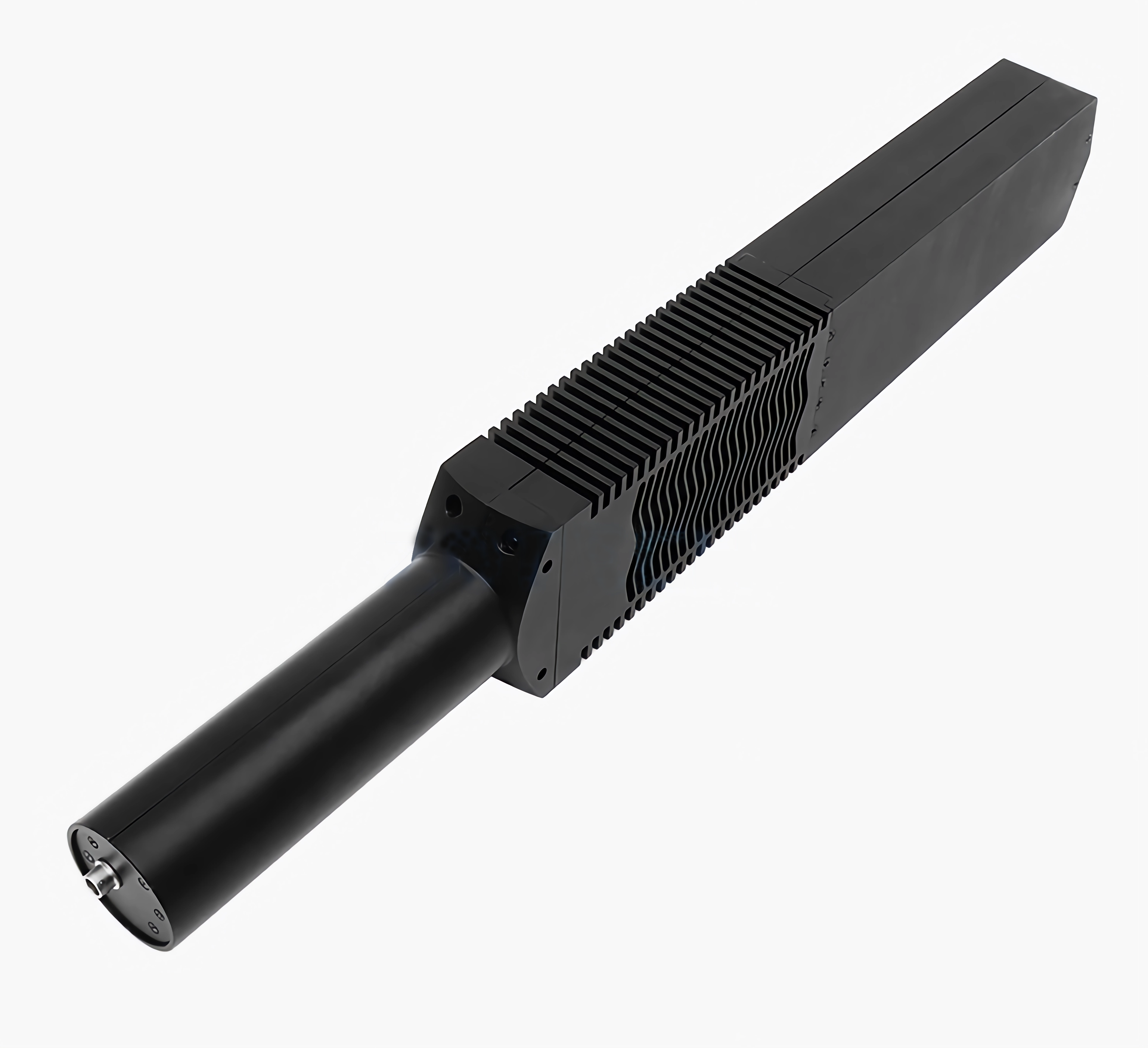

The equipment is equipped with output standing wave protection and temperature protection system, and built-in intelligent heat dissipation system to effectively prevent overheating.
4. Operation range and direction:
The interference range is directional, with a diameter of up to 1.5 kilometers and a coverage angle of 60 degrees.
5. Battery and power supply:
Built-in 28V, 10A battery, providing more than 1 hour of continuous operation. The charging method is an external 4A charger with automatic current management and automatic power-off function when fully charged.
6. Control and display:

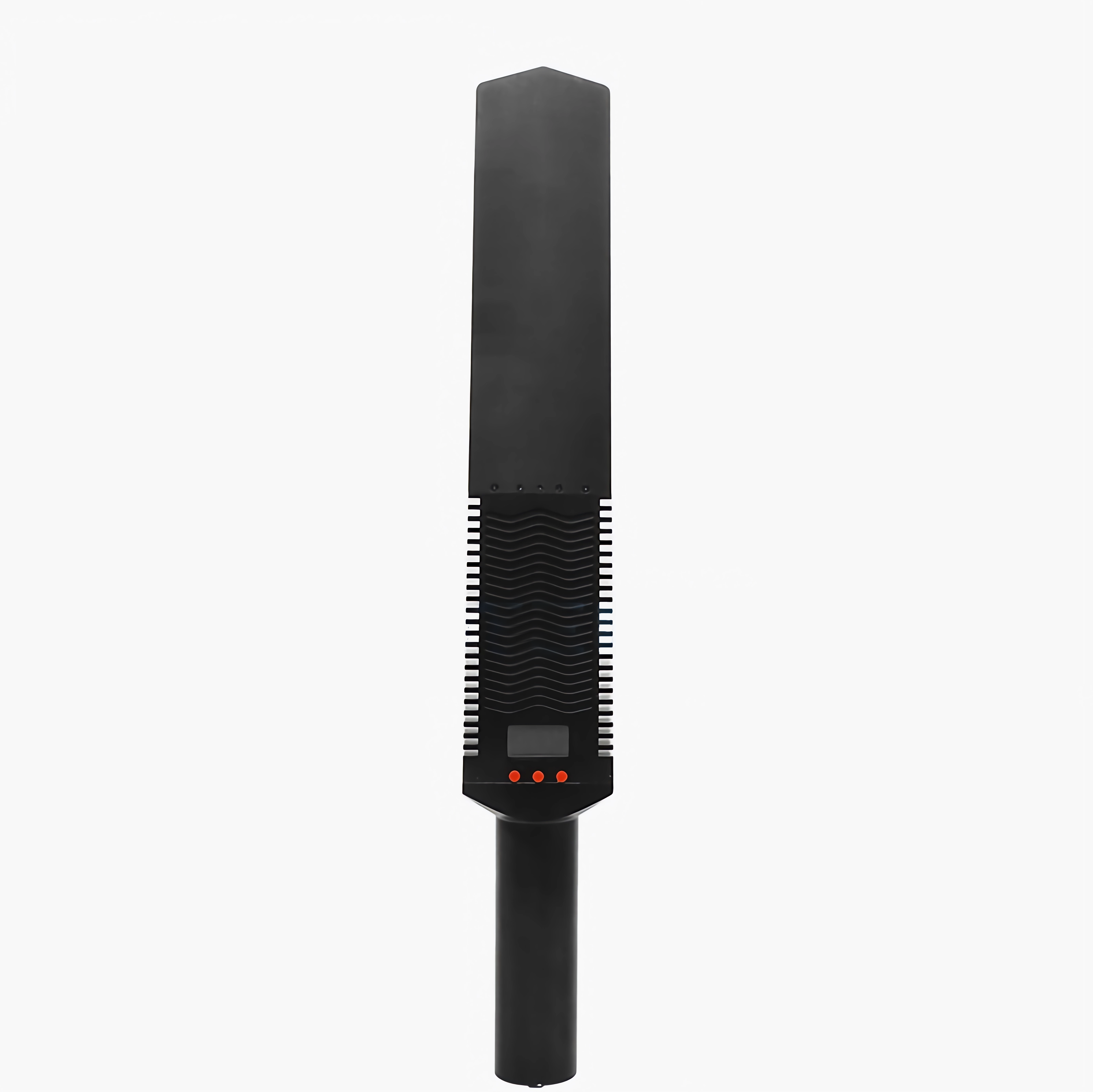

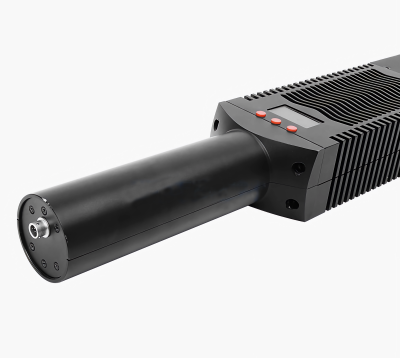

The device has 1 main power switch and 5 independent frequency band control switches for easy operation. The side is equipped with a battery percentage display, and the host LCD screen displays frequency, power and switch status.
7. Working environment:
The applicable temperature range is -35°C to +70°C, and the maximum working humidity is 80%.
8. Appearance size and weight:
– The host is 55 cm long, 15 cm wide (excluding the handle), and 9 cm thick;
– The width including the handle is 30 cm, and the weight is about 4.6 kg (including the antenna).
