Fixed Vehicle-mounted 8-channel drone Detection and Jamming Device

45,888.26$

The PUS-DF01 drone Detection System is a fixed, wide-range monitoring platform capable of detecting drones within a 3km radius. While it lacks identification and precise location capabilities, it comes integrated with a jamming system that effectively blocks drone signals within a 2km range, providing comprehensive coverage as a unified solution.

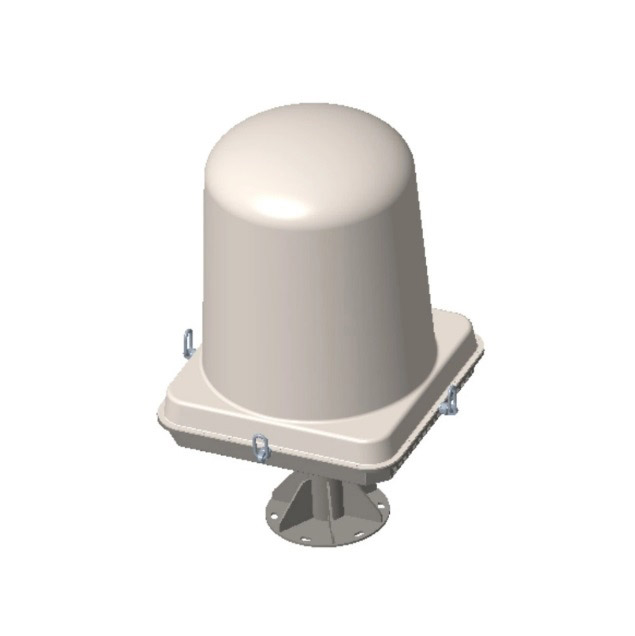

Fixed drone Detection and Jamming Device
Fixed Vehicle-mounted 8-channel drone Detection and Jamming Device 45,888.26$
SKU: PUS-DF01 Categories: , ,

This PUS-DF01 Fixed Vehicle-mounted UAV detection and jamming device is simply the “captain of security” around you. Its full-frequency coverage range is as wide as 20-6000MHz, and it can keenly detect the movement of drones within a range of 3 kilometers. While it lacks identification and precise location capabilities, it comes integrated with a jamming system that effectively blocks drone signals within a 2km range, providing comprehensive coverage as a unified solution.

It supports remote control and monitoring, and is also equipped with an intelligent heat dissipation design, which can keep “cool” even at high temperatures. If someone tries to destroy it, the system will immediately alarm. So reliable, do you still have to worry about drones causing trouble?

A sturdy bracket is installed at the bottom of the device to ensure that it can be firmly fixed on various surfaces, including the top of the car.

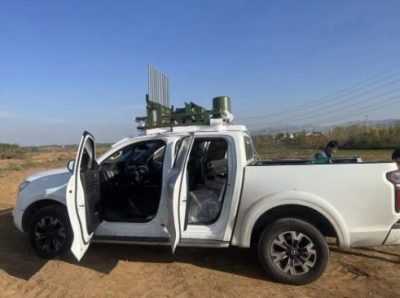

Vehicle-mounted drone scrambler

The PUS-DF01 UAV detection and jamming device is designed with an IP65 waterproof and sturdy casing for durability and long-term use. Whether it is windy, rainy, or scorching sun, PUS-DF01 can operate stably and protect your safety all day long.

Product Parameters

-Passive detection frequency: 20 MHz to 6 GHz
-Detection distance: 3 km
-Detection sensitivity: ≥ -95dBm (25kHz)
-Omnidirectional coverage: 360° all-round detection
-Multi-target detection: All drones in the detection area
-Detection height: 0~1000 meters
-Response speed: ≤2 seconds
-Data refresh: ≤2 seconds
-Detection accuracy: ≥99%
-Working time: 7*24 hours
-Working temperature: -20 to +50ºC
-Power supply: AC 110V-240V

Technical parameters of the jammer system



 Frequency band configuration 20-600 MHz
600-1400 MHz
1400-2200 MHz
2200-3000 MHz
3000-3800 MHz
3800-4600 MHz
4600-5400 MHz
5400-6200 MHz
 Total system configuration Number of channels 8 frequency channels in total
 Power per band 50 watts, total output power of all bands is 400 watts
 Power regulation adjustable through software
 Interference range can affect the range of 500 to 2000 meters, the specific effect  depends on the local environment and the distance between the drone, remote control and the jammer
 Antenna built-in high-gain omnidirectional antenna

PUS-DF01 Advantages

  • Each system supports drone signal detection and jamming functions.
  • The remote monitoring platform of the network management system can remotely monitor the device status, including abnormal offline and fault alarms.
  • If the jammer is maliciously turned on, the RF line is cut, the module fails or the temperature is abnormal, the software will automatically trigger a fault alarm and feedback the problem as soon as possible.
  • Supports optional UPS power backup to ensure normal operation when the main power fails.
  • Each module can be independently controlled to open and close through computer software.
  • Compatible with high-power omnidirectional antennas and directional antennas.
  • With VSWR circuit protection function to prevent damage to the system when the antenna is short-circuited or disconnected.

Additional information

Dimensions75 × 75 × 160 cm
