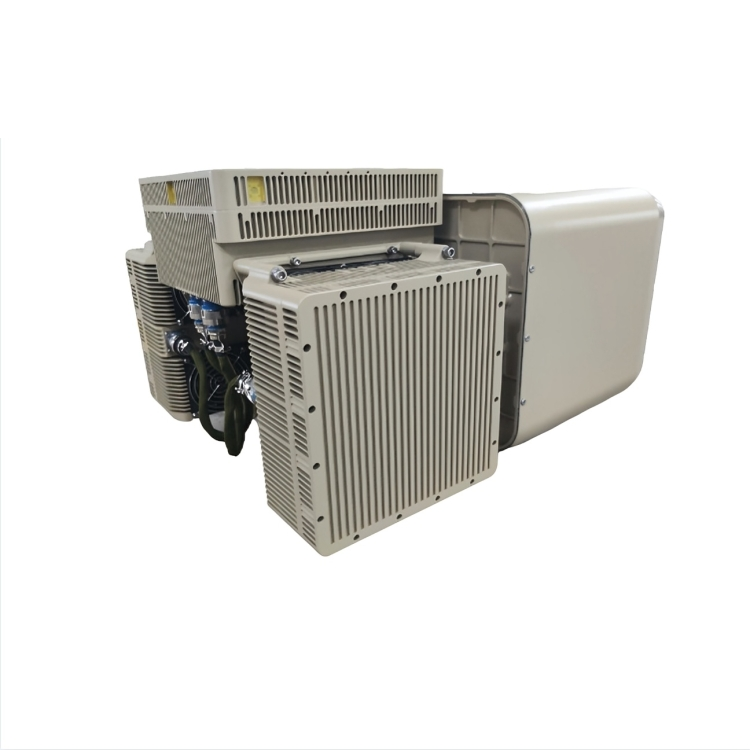

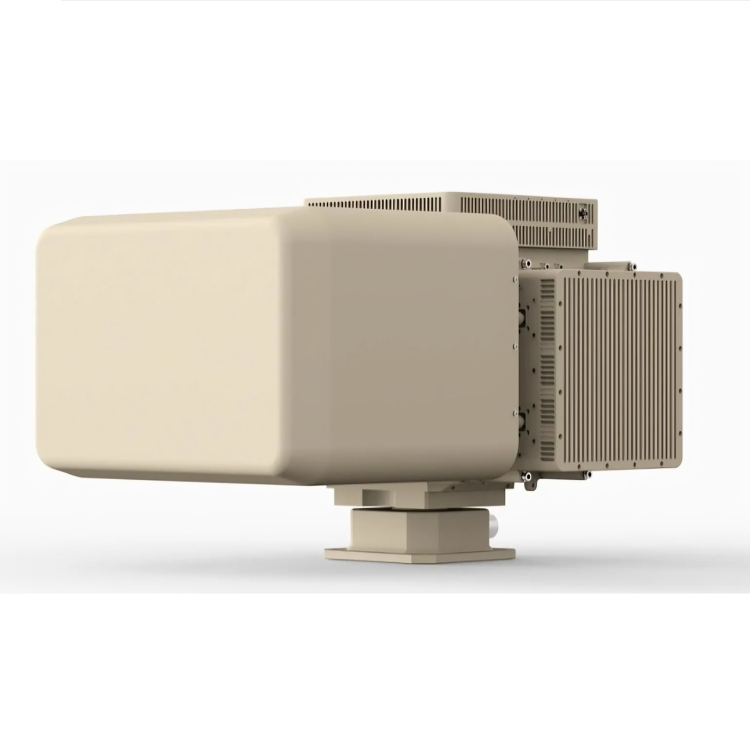

This box-type low altitude military UAV jamming device is the nemesis of drones, especially suitable for use in low-altitude areas. It covers an ultra-wide frequency range from 300MHz to 6GHz, which can effectively interfere with the satellite positioning of drones and communications with ground control personnel. In short, those uninvited “visitors” in the air will be instantly lost and forced to land or turn around and retreat.

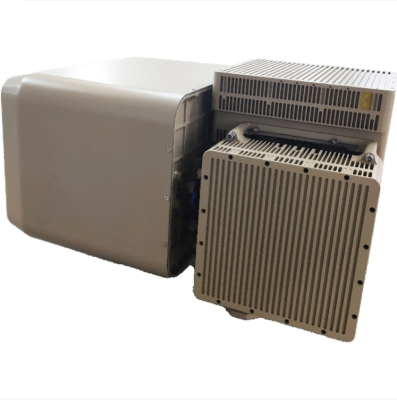

The device uses a square base to keep it stable in various installation environments to prevent shaking and displacement. The design of multiple heat dissipation holes ensures the heat dissipation needs of the device during long-term work, and it remains strong even in extreme weather. Whether it is hot summer or cold ice, this device can run steadily.
The main advantages of D-US-00-2 are full-frequency coverage and directional interference, and it can handle multiple targets at the same time. Flexible adjustment of key frequency bands such as 900MHz, 2.4GHz and 5.8GHz ensures that key frequencies are not missed.

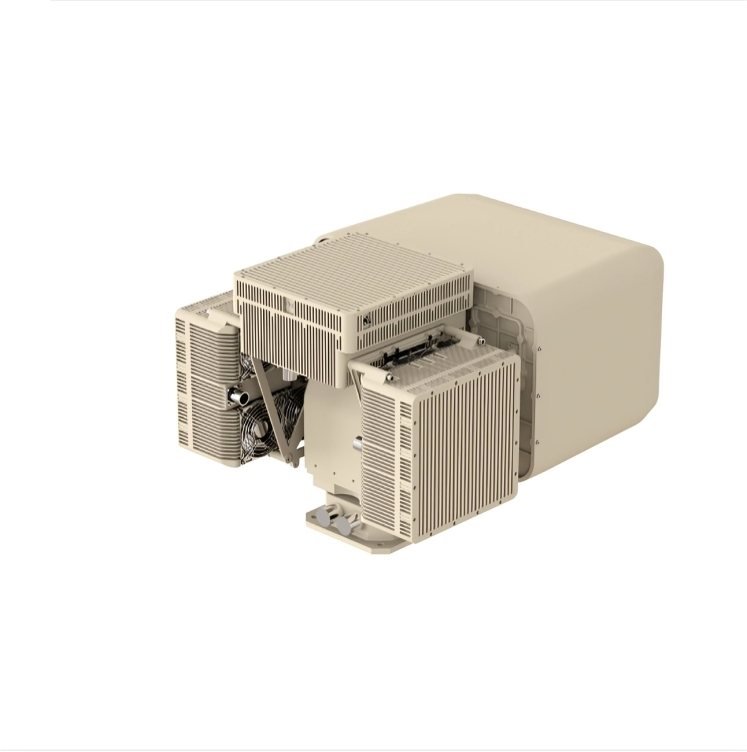

When the fixed UAV signal blocker is activated, the jammer is activated within 5 seconds (not counting the time the turntable rotates), and the jammer accurately locks the target direction with a jammer beam angle greater than 15 degrees, directly hitting the drone. Its jammer range is up to 5 kilometers, and it can effectively block telemetry, control links, and navigation signals.
You can set the jammer mode through programming, whether it is narrowband, broadband noise jammer, or scanning noise jammer, you can switch flexibly. Its 24/7 operation capability is also a major advantage, with a continuous transmission time of more than 1 hour.
In terms of azimuth coverage, the device can achieve all-round jammers from 0° to 360°, and the elevation coverage also reaches 0° to 30°. No matter from which direction or altitude the drone approaches, it cannot escape the precision strike of D-US-00-2.
Four independent channel output power：
* 0.3GHz – 1 GHz: ≥100W
* 1GHz – 3 GHz: ≥100W
* 3GHz – 6 GHz: ≥80W
* 1.1GHz – 1.7 GHz: ≥100W
Specifications:
| Interference bandwidth | ≥100MHz |
| Interference frequency band | Supports simultaneous blocking of ≥4 frequency bands |
| Navigation signal interference range | ≥5 km |
| Multi-target interference capability | Able to simultaneously interfere with ≥8 targets within the range |
| Power requirement | 220V±22V |
| Power frequency | 50Hz±5Hz |
| Power consumption | ≤1500W |
| Operating temperature range | -40ºC to 55ºC |
| Weight | ≤45 kg |
