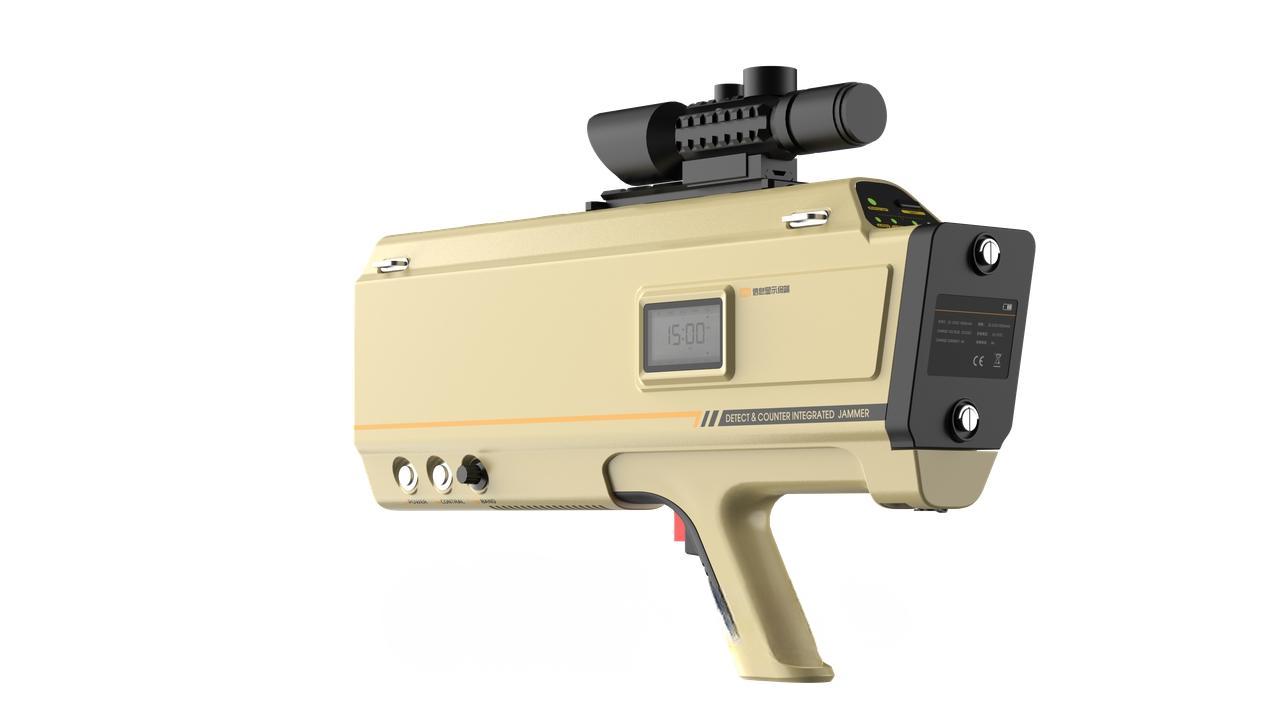

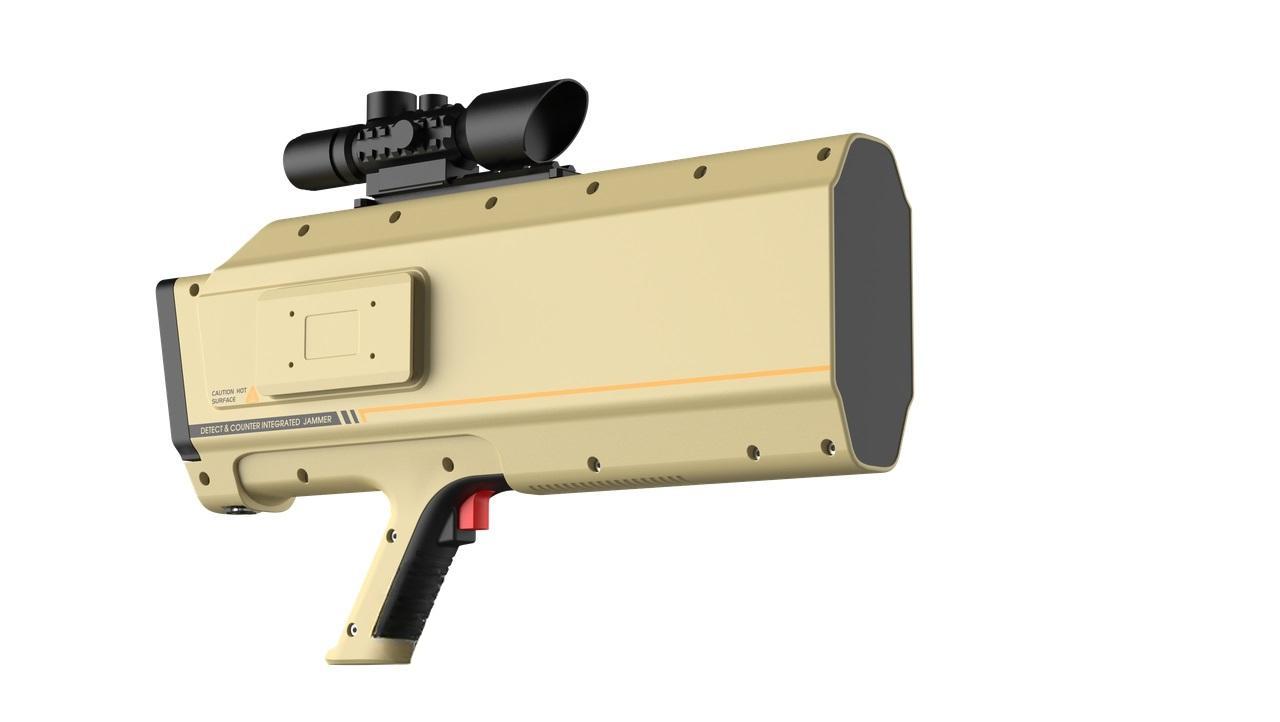

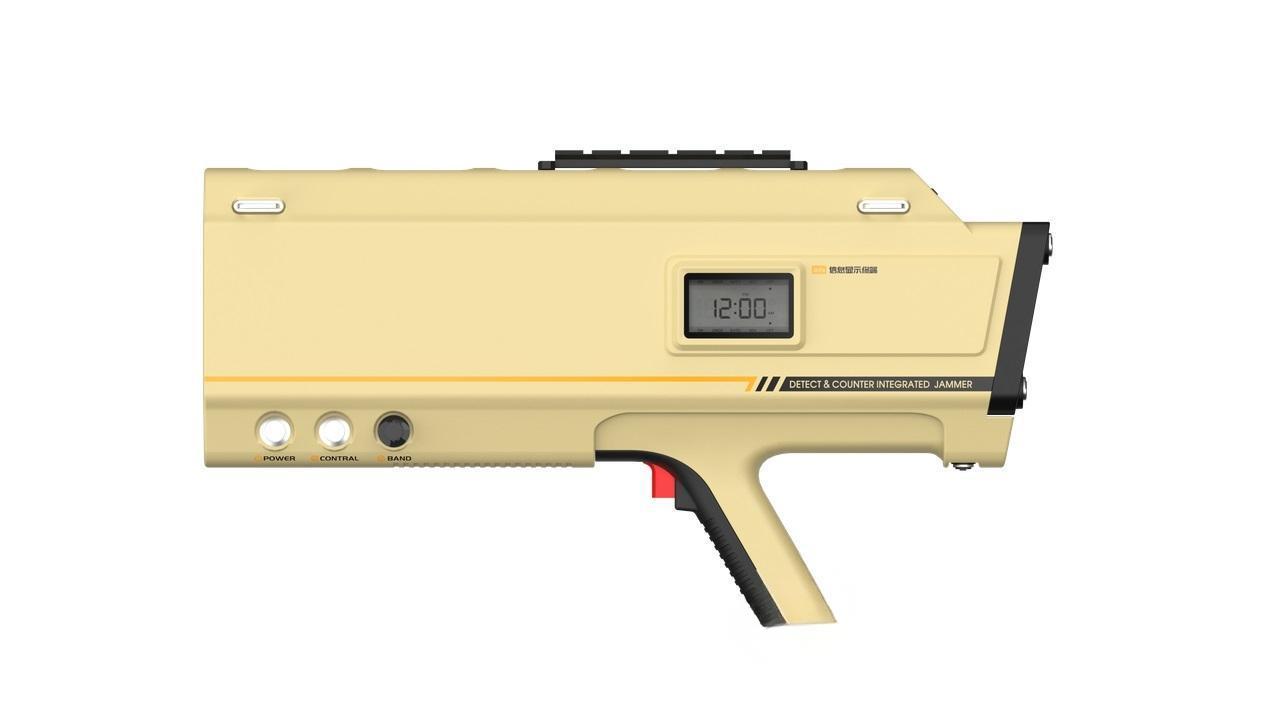

The WJ-2000M handheld portable drone jammer is an advanced, software-configurable device aimed at countering both standard and unconventional drone threats. Its software allows for customizable frequency bands, making it highly effective against various UAV targets. Lightweight and compact, this jammer is ideal for low-altitude defense scenarios, such as key meetings, large events, and routine patrols in designated areas.
A key feature of the WJ-2000M is its compatibility with an anti-UAV defense system (APP) command terminal and a multi-tiered command and control server platform. This enables smooth communication and coordination with other counter-drone devices, boosting the overall efficiency of the defense network.
By linking this anti drone Jamming Device to a common terminal and server platform, users can benefit from intelligent data integration, efficient platform management, and optimal resource distribution. These capabilities are essential for creating a robust airspace management system over large areas and critical sites, ensuring comprehensive protection against drone incursions.
Features:
- Adjustable frequency range.
- Software-configured jammer, capable of modifying the jamming frequency and band according to the UAV’s baseband.
- Extended drone suppression range, with a distance exceeding 1.5 km.
- Integrated control via the anti-UAV system’s common platform.
- Utilizes Internet of Things technology to transmit the device’s coordinates and orientation to the anti-UAV system platform (via a mobile platform), providing a comprehensive view of the situation and facilitating task completion.
- Lightweight and user-friendly: Constructed from light materials, making it easy to carry and operate with one-button launch control.
Data sheet:
| Default rejection frequencies | 433(430-450)/868(860-873)/900(902-928)* 1575,42 / 1602* 2400 (2400-2484) 5200 (5150-5350) 5800 (5725-5875) |
| Software-configurable frequencies | 300 MHz~2 500 MHz |
| Suppression range | more than 1.5 km (radiation source 0.1 W) |
| Suppression ratio | not less than 10:1 |
| Information on the LED display | Self-test status, date and time, battery level and interference duration. |
| Mobile terminal (APP) (additional option) | Control of the device, as well as for connection to a common platform of the anti-drone system. |
| Size | 500mm*300mm*100mm |
| Weight | less than 3.5 kg. |
| Nutrition | Removable lithium battery |
| Aim | Optional |
