A portable anti-surveillance signal finder designed for detecting, locating and monitoring hidden cameras and disguised video recording devices is now available! It has powerful detection and analysis technology and an intelligent operating system to help users efficiently detect hidden electronic devices.

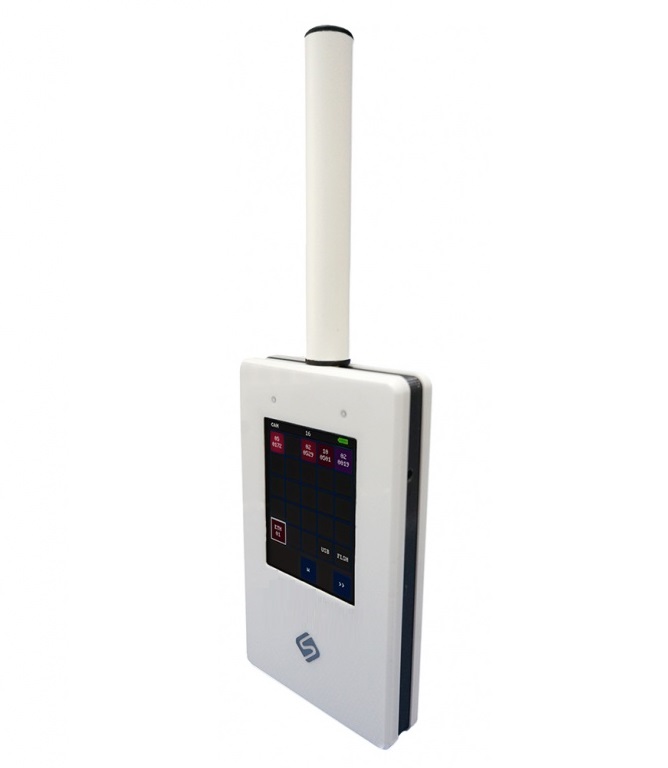

The front is equipped with a high-resolution LCD screen that can display key information such as signal strength and frequency in real time, and can clearly display data even in low-light environments.
P-US-AR1 supports connection with smartphones via Bluetooth, and detection parameters can be adjusted remotely through the phone. When the device finds hidden spy devices or cameras, the relevant signal data and location information will be transmitted to the mobile phone via Bluetooth for subsequent data processing and recording.
This high gain single antenna video monitoring signal detection device can identify and analyze frame pulses or line pulse signals emitted by the camera through the specially developed line detection technology (RDT). The built-in spectrum composition analysis function combined with a powerful signal database can accurately distinguish different types of analog and digital devices based on the frequency, waveform and other characteristics of the signal, including:
- Analog cameras (such as CCIR, CVBS, supporting PAL and NTSC standards)
- Digital high-definition cameras (such as AHD, CVI, TVI, PVI, etc.)
- IP cameras (support Ethernet connection)
- USB cameras (support UVC and OTG protocols)
- Recording devices with USB flash or SD cards
- Digital video recorders (DVRs).
The device is equipped with external antenna extensions. In complex electromagnetic environments, the external antenna can not only significantly increase the detection range, but also enhance the sensitivity of long-distance signal capture.
P-US-AR1 allows users to create a signal “white list” and add legitimate or known device signals to the list. Reduce false alarms caused by signal interference from common wireless devices (such as Wi-Fi, Bluetooth, etc.), and improve detection efficiency and accuracy.
With detailed event logging function, each detected signal data (including signal type, strength and frequency, etc.) will be saved, which is convenient for users to review or export for in-depth analysis at any time.
General parameters of signal finder for hidden cameras
* Detection type: electronic signal
* Detection range: 2 – 25 meters
* Autonomous operation time: at least 2 hours
* Power supply type: lithium polymer battery
* Casing material: plastic
* Power supply voltage: rechargeable via 5V/2A USB Type-C
* Detection time: average detection time 2 seconds, analysis time 5 seconds
* Indication method: touch screen display
* Screen: color, 74 mm diagonal
* Antenna: cylindrical, 127 mm long, 16 mm diameter
* Number of images that can be stored in the device memory: 16
* Charging time with standard charger: no more than 3 hours
