The digital backpack jammer system is engineered to effectively block remote control and mobile phone signals, ensuring safe and uninterrupted operations in critical situations.
The jammer utilizes advanced DDS (Direct Digital Synthesis) technology for optimal performance. Its jamming radius varies based on factors like transmitter frequency, output power, distance from the receiver, and environmental obstacles, enhancing its effectiveness across diverse settings.

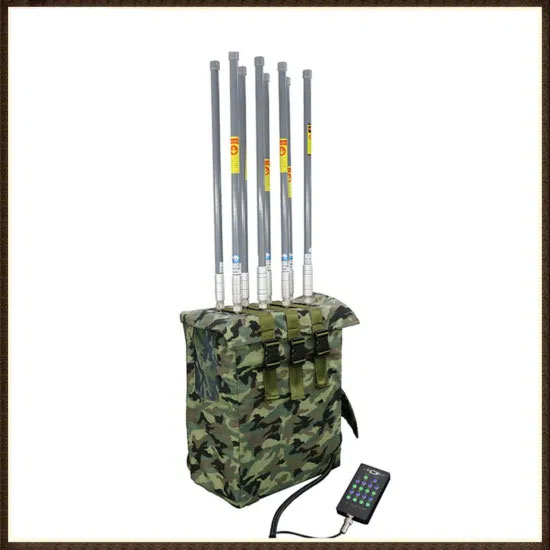

The USWR08 RCIED Manpack Jammer is a versatile backpack system designed to safeguard VIP’s and groups from Radio Controlled Improvised Explosive Devices (RCIEDs) by disrupting radio signals used for detonation in high-risk zones. It also prevents information leakage by intercepting communications in confidential discussions, ensuring both security and privacy.

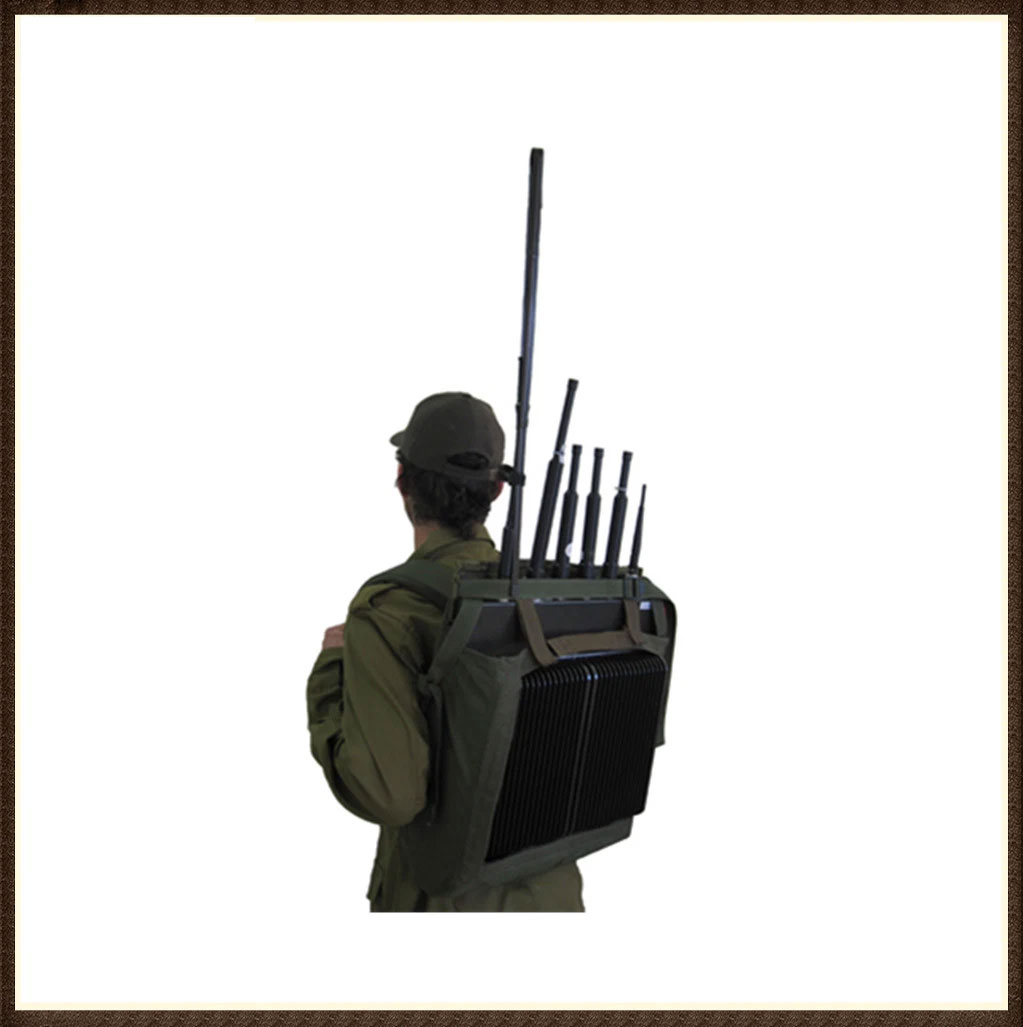

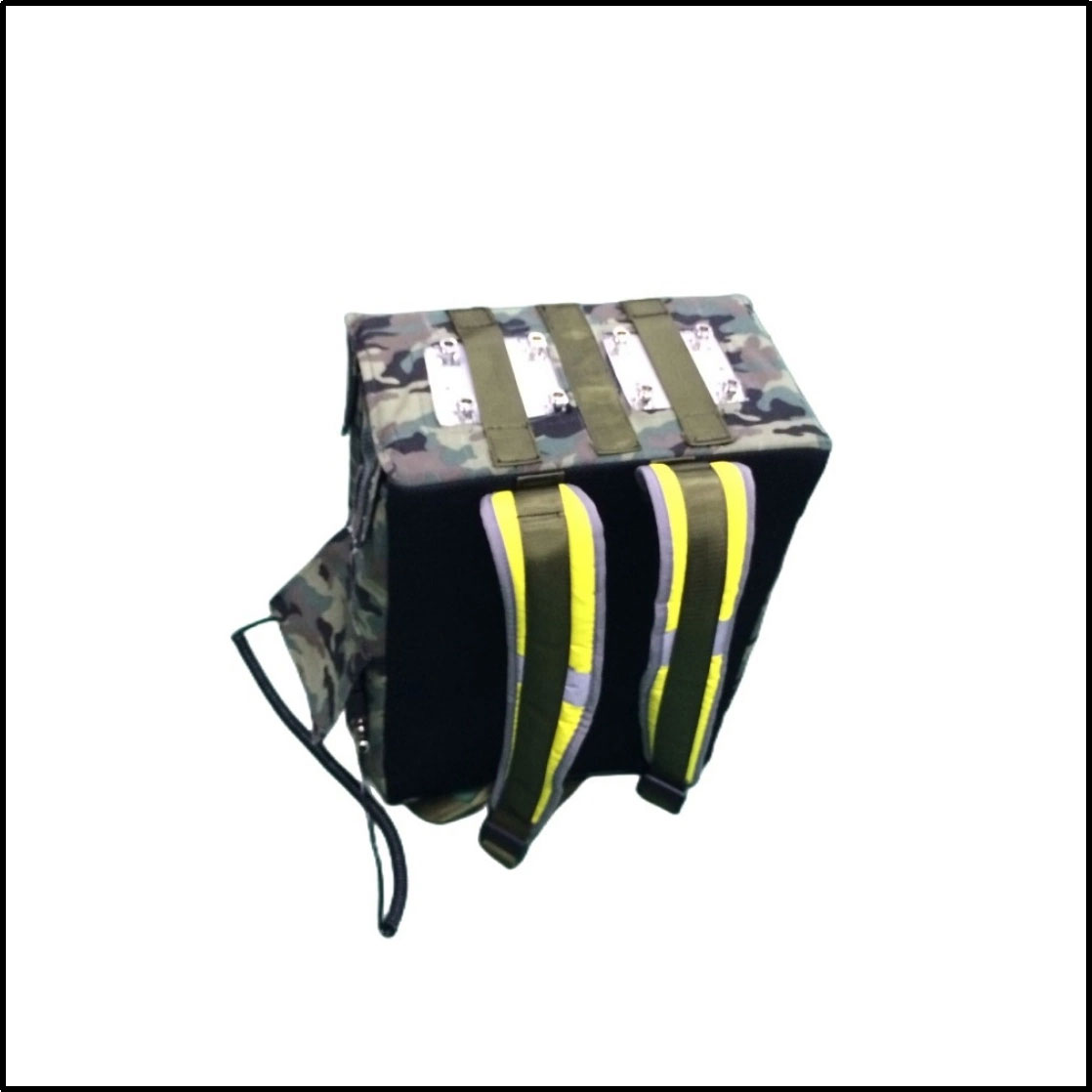

Primarily intended for military applications, the USWR08 is a costly solution meticulously designed to ensure maximum comfort for soldiers by optimizing the jammer backpack’s positioning. It is built to withstand severe environmental conditions such as rain, dust, mud, sunlight, shocks, and high temperatures.
Technical specifications:
| Working Frequencies | Channel RF Output Power (Watt) | Jamming Target |
| 130-180MHZ | 20W | RC, CB, FM, VHF |
| 420-480MHZ | 20W | RC, UHF |
| 700–803MHZ | 20W | LTE 4G 700mhz |
| 850–895MHZ | 20W | CDMA Phone 850mhz |
| 1930-2000MHZ | 20W | Phone 1900mhz |
| 2100–2200MHZ | 20W | 3G 2100MHZ |
| 2500-2700MHz | 20W | 4G WiMAX Sprint |
| 617-652MHz | 10W | 5G |
Output Power: 150W in total, with 20W per band
Jammer Range: 20-100 meters
Power Supply: AC110-240V converted to DC-28V
Cooling System: High efficiency aluminum alloy radiator with built-in intelligent cooling fans
Battery Life: Built-in battery and external battery option
Product Size: 430*320*120mm (without antenna)
Product Weight: About 20kg
Remote Control: Wired remote control to turn on/off the jammer and adjust the power, supports software remote control
Battery: Built-in battery allows 1 hour of operation

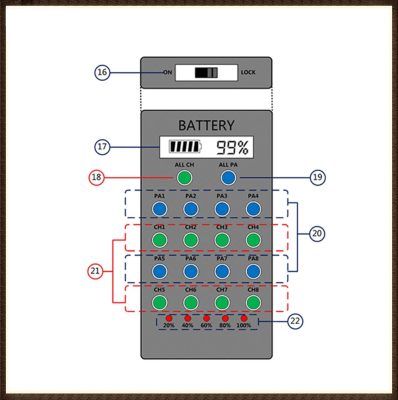

Remote Control:
Displays working status and alarm indicators
Adjusts RF power for each band
Enables/disables power amplifier for each band
