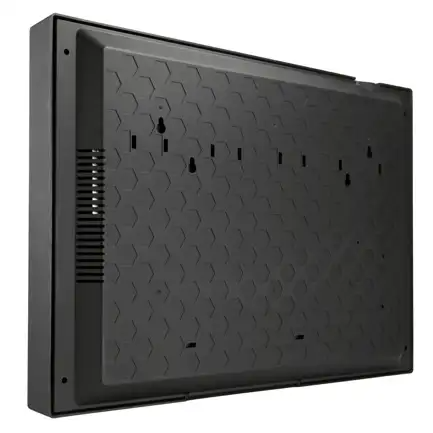

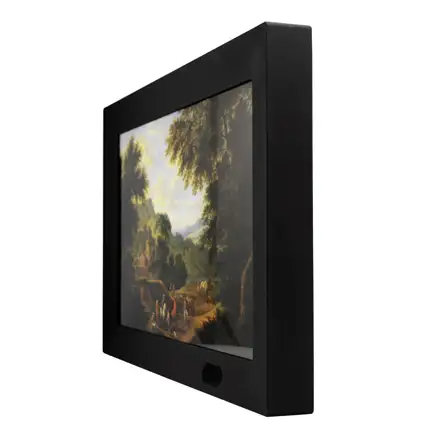

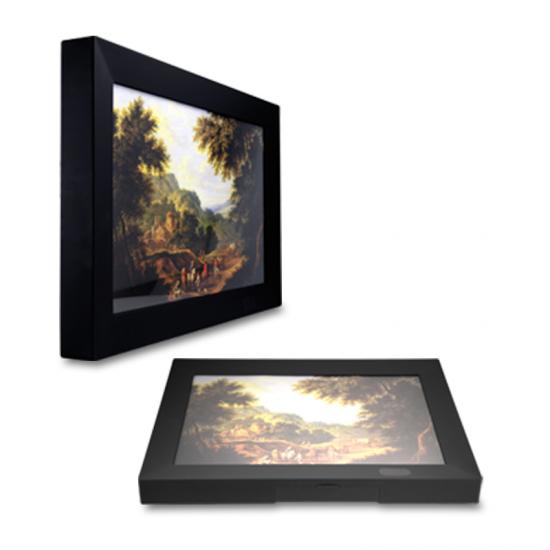

Picture-Frame Style Intelligent Signal Jammer

Wall-Mounted Cell Phone and 4G Internet Signal Jammer

The cell phone and 4G Internet signal jammer, designed to look like a painting, automatically or continuously blocks the transmission of data over 3G, 4G Internet, Wi-Fi, and GSM networks. This device, styled as a photo frame, scans the room for radio waves emitted by wireless devices such as GSM/3G cell phones, 4G routers, and Wi-Fi networks. Once it detects RF radiation, it automatically activates its blocking mode, covering a detection radius of up to 25 meters. Users can also connect the jammer to a laptop or computer to adjust the interference power and selectively disable certain frequencies. Note that the suppression radius can vary based on the proximity and power of the cellular operator’s repeater, with a maximum range of up to 50 meters, depending on the mobile signal level of 60-80%.

Ideal for Secure Meetings

This jammer is especially useful during crucial business meetings, negotiations, and other important gatherings, as it helps prevent information leakage via GSM bugs, Wi-Fi networks, mobile 3G, and 4G Internet. Its intelligent operating mode allows it to scan the room for any wireless device radiation and automatically activate the interference generator when a source is detected. Additionally, the device can suppress 4G LTE signals, effectively blocking modems that use LTE wireless Internet and preventing any data transmission.

Remote and Computer Control

The jammer can be controlled via a laptop or personal computer, allowing users to adjust the suppression power, enable or disable specific blocking ranges, and manage the device’s operation in smart mode. It supports a wide range of suppression frequencies, including GSM 900/1800, 3G 2100, Wi-Fi 2400, and 4G(LTE)2600. A remote control is also included, enabling users to turn the device on or off from a distance, ensuring convenience and efficiency in maintaining a secure environment.

The basic information of  XK-US-6 is as follows:

Features：

1. Aesthetic Design: The device is designed to look like a photo frame, and the photo can be customized to suit the application environment.
2. Smart Detection and Blocking: The blocking function is activated intelligently, making it environmentally friendly.

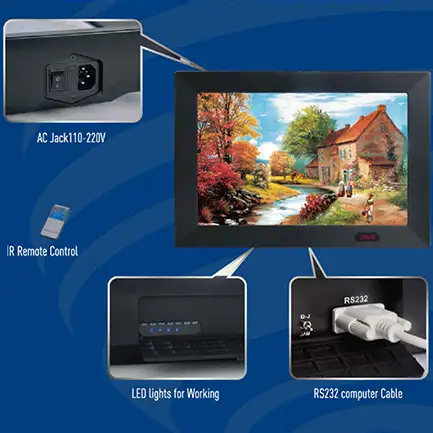

3. PC Management: Supports RS232 communication port, allowing control via a computer.
4. Adjustable Shielding Range: The output power of each band (shielding coverage range) can be adjusted through a computer connection.
5. Adjustable Detection Range: Offers 30 levels of detection range options.
6. Remote Switch: Infrared remote control allows the device to be turned on or off within a range of 0 to 10 meters.
7. Built-in Antenna: The built-in directional antenna ensures more accurate shielding and high concealment.
8. Operation Indication: LED indicators show the active state and the current time.
9. Band Indication: Separate LEDs for each band indicate detection (blue light) and shielding (red light).
