Drone radio detection equipment: intelligent monitoring within 6 km
This advanced AeroWatch drone detection equipment can cover the full-band signals from 300MHz to 6000MHz within a range of 6 kilometers, especially for capturing drone signals in the 2.4GHz and 5.8GHz bands.
The equipment has intelligent automation functions and can activate the sound and light alarm system the moment the drone radio signal is detected.
With the integrated low-altitude safety control system, the equipment can automatically activate the interference mechanism based on the captured location information and signal frequency, effectively suppress the signal in the area where the drone is located, and force the drone to return or land safely.
Excellent advantages: all-weather accurate monitoring and intelligent identification

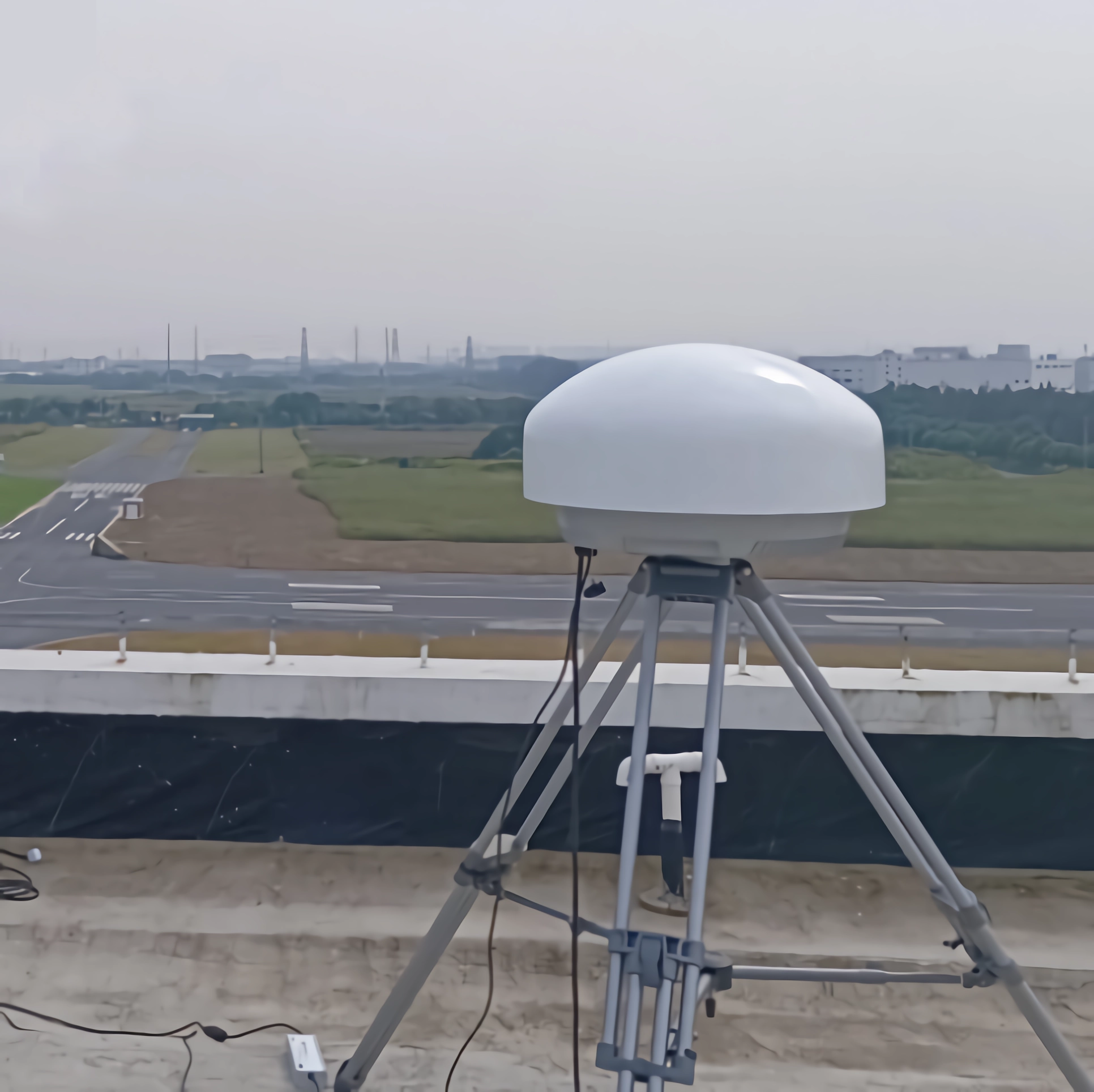

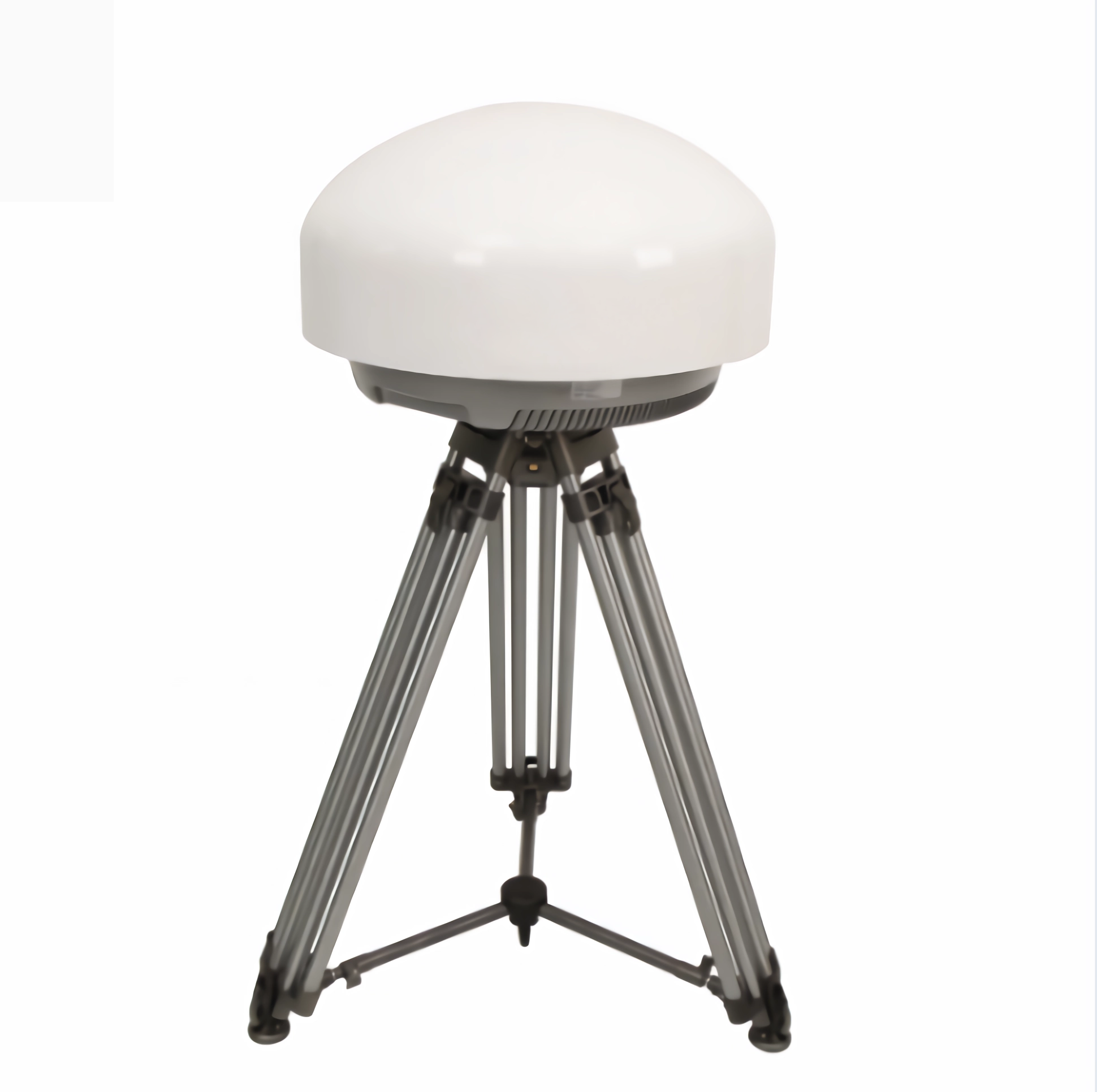

The biggest highlight of our equipment is its fully automated operation capability. It can not only automatically detect drone signals, but also accurately identify the model of drones (including quadcopters, fixed-wing drones, DIY FPV drones, etc.) and track their positions in real time. The tripod-type support structure can be adjusted in height according to needs, and can be stably placed on a flat surface or set up on various rugged ground at will.

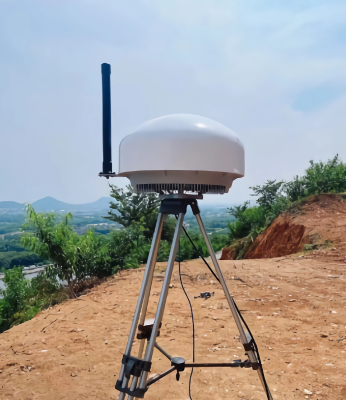

D-US-00-1 adopts a sturdy weatherproof shell. Whether it is night, dense fog, or bad weather conditions, this device can provide uninterrupted signal detection 24 hours a day, 7 days a week, ensuring that the monitored area is always protected.
In addition, once the drone is started, even if it has not yet taken off, the device can quickly detect the signal on the ground, provide early warning, and greatly increase the time window for security protection.
Multi-function recording and analysis: comprehensive grasp of drone flight data

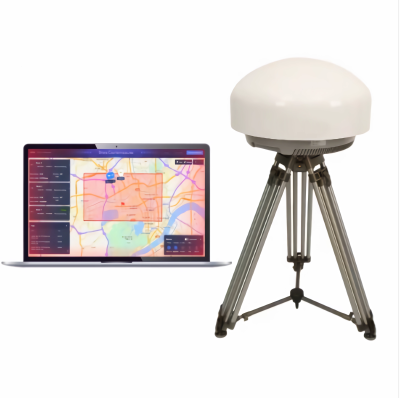

In addition to detection and alarm functions, the device also has powerful data recording and analysis capabilities. It can fully record and store the flight trajectory of the drone and display it graphically in the platform system.
The device also supports the storage, query and playback of alarm information, helping users to comprehensively analyze and review the activities of the drone. For drones of unknown models, the device will automatically record its relevant data and send alarms to the platform system to ensure that even unfamiliar threats can be discovered and handled in time.
Fully automated operation: unattended intelligent management
This drone detection supports fully unattended operation and can automatically record various important parameters including time, frequency, bandwidth, model, azimuth, etc., eliminating the trouble of manual intervention. It also has a black and white list function. Users can add or delete whitelist drones as needed to ensure that legal aircraft are not interfered with.
In order to meet the needs of different regions, the device supports segmented setting of scanning frequency to provide more targeted monitoring solutions.
Built-in intelligent module: high-precision positioning and signal feature expansion
The device has a built-in high-precision positioning module that can automatically calibrate and provide GPS positioning function. In addition, it also has the ability to expand the drone spectrum feature library. It can collect drone signals on site through the platform system and add them to the feature library to continuously improve detection accuracy and efficiency.
Drone Detection D-US-00-1 Specifications:
- Supported frequency : covers 2.4GHz and 5.8GHz signals
- Detection angle : 360° horizontal detection in all directions
- Detection range : can reach more than 6 kilometers
- Azimuth accuracy : root mean square error does not exceed 3°
- Positioning accuracy : accurate to ±5 meters
- Protection level : meets IP66 standards
