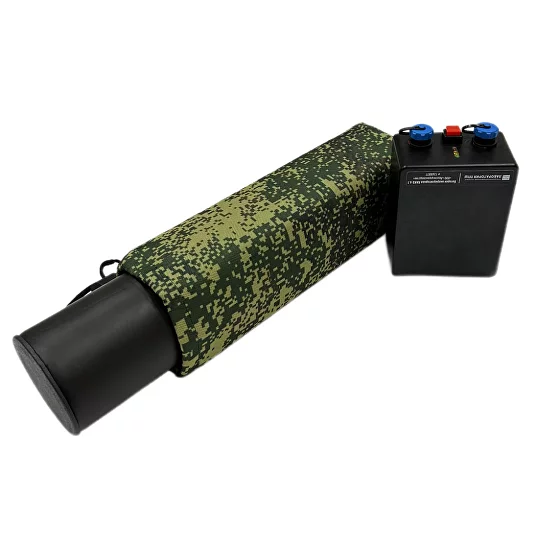

T-US-G601 is a cylindrical GNSS jammer designed for anti-drone. It effectively jams GPS, GLONASS, Galileo and other satellite navigation signals by directional emission of 1.2GHz/1.5GHz frequency band jammer signals. The target drone will lose its positioning capability within the radiation range and be forced to hover, return or make an emergency landing. The maximum effective radius is 3 kilometers, which is suitable for sensitive area protection, privacy protection and military purposes.
T-US-G601 uses military-grade filtering technology to accurately suppress the target frequency band while avoiding collateral interference to surrounding communication equipment. Its modular design allows for later upgrades of the jammer frequency band to cope with the evolving drone navigation technology.
Technical advantages of Drone GNSS Blocker
- Dual-band optional: The 1.5GHz version targets the L1 frequency band (GPS/GLONASS/Galileo), and the 1.2GHz version covers high-frequency anti-interference frequency bands such as GPS L5, L2, GLONASS L5, L2, GALILEO E5, E6, which are suitable for mainstream commercial drones and high-precision navigation equipment.
- Intelligent coverage mode: original spherical/hemispherical radiation field, forming a three-dimensional interference network when installed vertically to avoid signal blind spots.

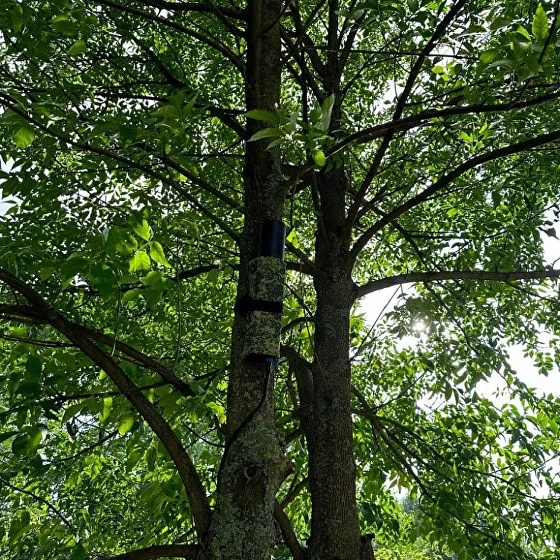

- Concealed deployment: camouflaged portable bag and multi-function bracket support rapid fixing on trees and walls, no professional debugging required, and can be put into operation in 3 minutes.
- Dual-mode power supply: built-in high-density lithium battery supports 8 hours of continuous operation, external 220V power supply can achieve uninterrupted work, and 10W low power consumption design takes into account both performance and concealment.
Scenario-based applications:
- Key facility protection: electronic fences in no-fly zones such as airports, military bases, and prisons
- Dynamic countermeasures: vehicle-mounted mobile deployment to respond to sudden drone intrusions
- Privacy protection: blocking commercial espionage drones from collecting images of sensitive areas
Technical parameters:
- Size: 405×80×80mm (portable cylindrical design)
- Weight: 1.25kg (including battery)
- Operating temperature: -20℃~55℃ (all-weather operation)
- Interference angle: 360° horizontal coverage/180° hemispherical mode
