P-US-08-10 is a GPS jamming device with gsm lojack shielding function. In addition to blocking the full-band GPS frequency, it can also block mobile phone signals below 3G technology and Lojack running on 167-175MHz. It can intercept signals within a range of up to 15 meters, that is to say, when the gps jammer for truck driver is working normally, eight signals including GPS signals, DCS/PHS, and Lojack within 15 meters will be ineffective.
Main features of GPS jamming device:
It adopts handheld design and is only as big as a common mobile phone or walkie-talkie. You can hide it in your pocket or shoulder bag.
It uses a low-battery reminder LED light. When the device battery is too low, the low-battery indicator on the side will light up, and then you can use 110-220V AC charger or DC 12V car charger to charge it.
This GPS blocker has a certain stability. The mesh ventilation and heat dissipation design is arranged on both sides of the fuselage, which supports you to turn on the device continuously for 2 hours, and the case temperature will not exceed 45℃.

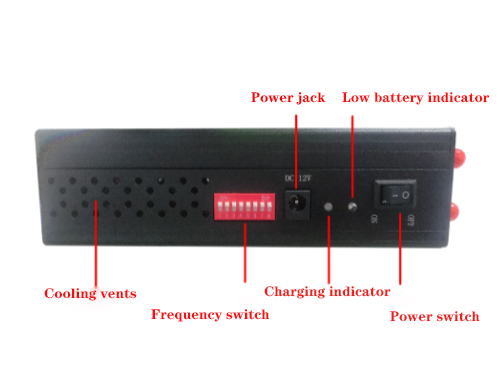

The frequency selection switch is realized by DIP switch. There are eight independent white mini switches on the side. Each switch controls a frequency separately. You can jam up to eight frequencies at the same time. The output power is 8W at this time.
Built-in high-capacity lithium battery (7.4V 3600mAh), can be recharged repeatedly, can be charged by AC or in-vehicle.
Use VCO voltage-controlled oscillation co-frequency interference technology for shielding, safe and reliable.
>>Jamming frequency range:
CH 1: GSM & CDMA: 850-960MHz
CH 2: DCS & PHS: 1805-1990MHz
CH 3: 3G: 2110-2170MHz
CH 4: WIFI & Bluetooth: 2400-2500MHz
CH 5: GPS L1 & Glonass L1: 1520-1620MHz
CH 6: GPS L2 & L5 & Glonass L2: 1170-1280MHz
CH 7: GPS L3 & L4: 1370-1390MHz
CH 8: LOJACK: 167-175MHz
>>After-sales maintenance:
We provide one-year warranty.
>>Technical Parameters:
Antenna: 8 omnidirectional antennas
Single output power: +30 dBm / 1 watt
Shielding radius: 15 meters
Battery type: built-in 7.4V 3600mAh battery, fully charged for 2-3 hours of continuous operation

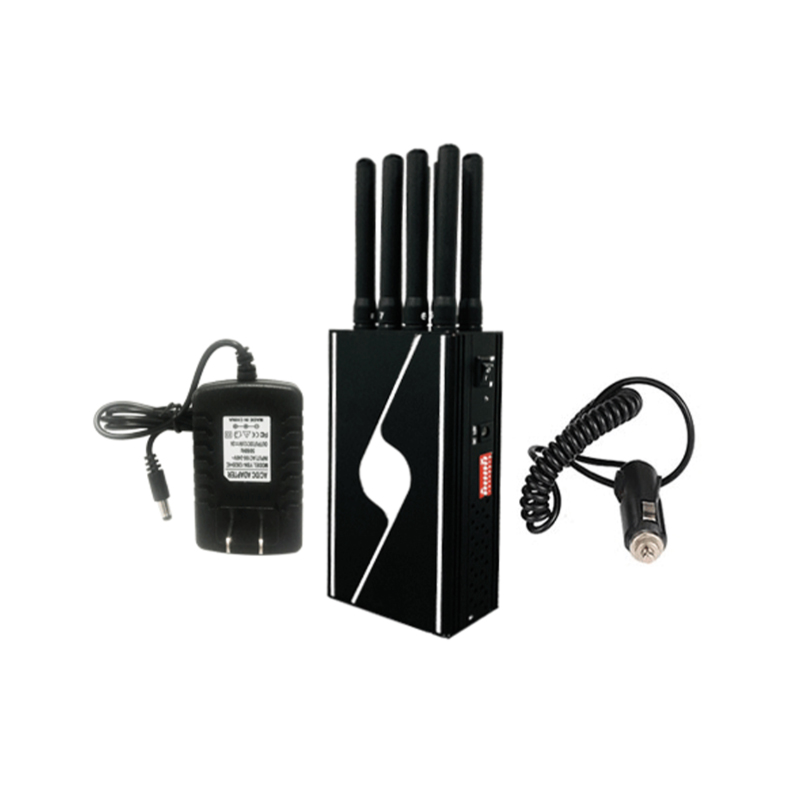

Power supply (charger): AC charger (input: AC100-240V) and car charger (DC12-24V car cigarette lighter)
Dimensions: 140*75*35 mm (without antenna)
Working temperature: -40℃ to +55℃
Relative humidity: ≤90%
Air pressure: 86~106 kPa
